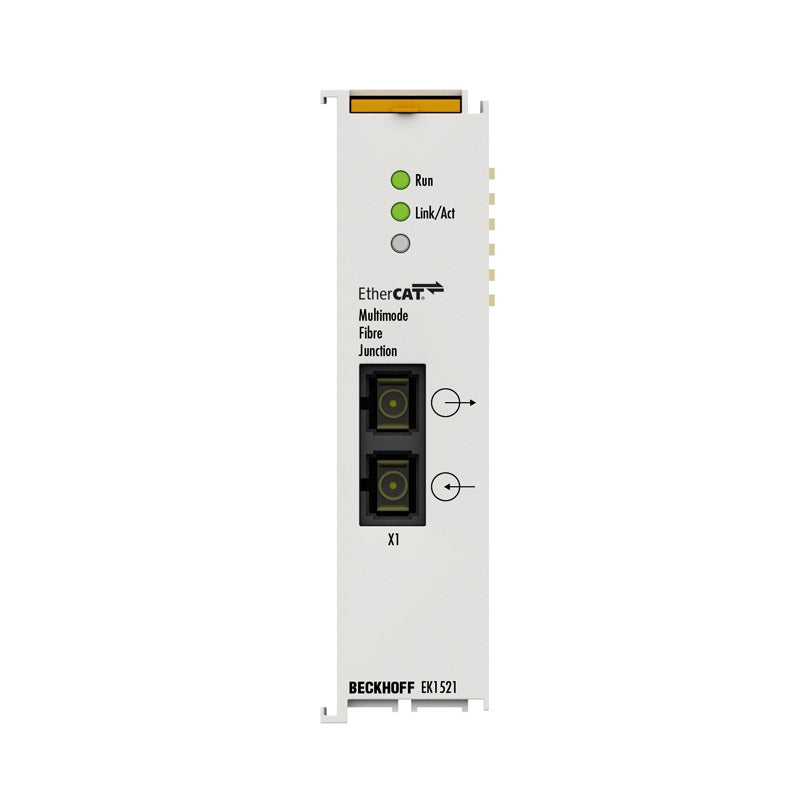

Beckhoff EK1521 | Beckhoff Ethercat Terminals

EK1521 | 1-port EtherCAT fiber-optic junction

The EK1521 1-port EtherCAT junction with multi-mode fiber-optic connection can be applied in an EtherCAT Terminal segment at any position between EtherCAT...

Technical Specifications

EK1521 Task within EtherCAT system coupling of EtherCAT junctions via multi-mode glass fiber Transmission medium multi-mode glass fiber 50/125 µm (MM) Distance between stations max. 2000 m (100BASE-FX) Number of EtherCAT Terminals – Type/number of peripheral signals – Protocol EtherCAT Propagation delay approx. 1 µs Transmission rate 100 Mbit/s Configuration not required Bus interface 1 x SC Duplex Power supply from E-bus Current consumption 24 V DC – Current consumption E-bus typ. 350 mA Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Tech

Availability: regular delivery
