Beckhoff EK1501 | Beckhoff Ethercat Terminals

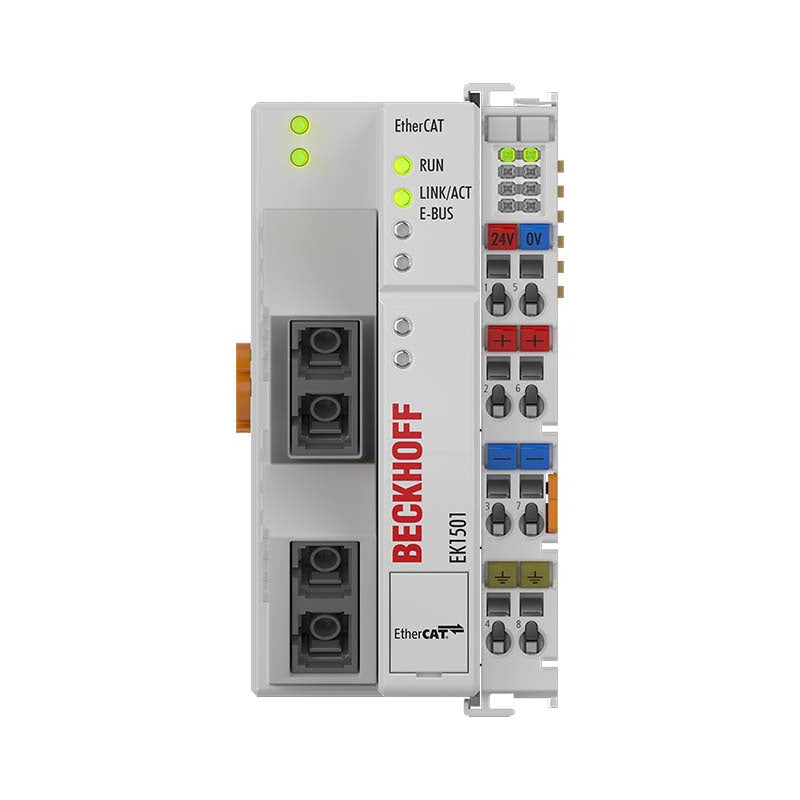

EK1501 | EtherCAT Coupler with ID switch, multi-mode fiber optic

The EK1501 EtherCAT Coupler with multi-mode fiber-optic connection is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals...

Technical Specifications

EK1501 Task within EtherCAT system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification Transmission medium multi-mode glass fiber 50/125 µm (MM) Distance between stations max. 2000 m (100BASE-FX) Number of EtherCAT Terminals up to 65,534 Type/number of peripheral signals max. 4.2 GB addressable I/O points Number of configurable IDs 4096 Protocol EtherCAT Propagation delay approx. 1 µs Transmission rate 100 Mbit/s Bus interface 2 x SC Duplex Power supply 24 V DC (-15%/+20%) Current consumption from U S 130 mA + (∑ E-bus current/4) Current consumption from U P load Current supply E-bus 2000 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/Ethernet) Weight approx. 190 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relat
