Beckhoff EK1122 | Beckhoff Ethercat Terminals

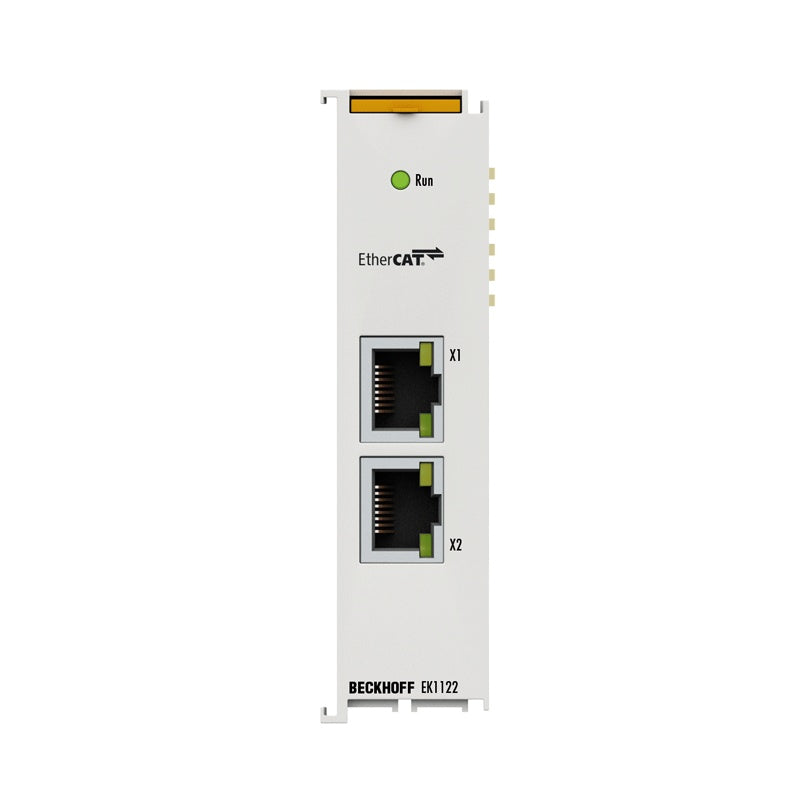

EK1122 | 2-port EtherCAT junction

The EK1122 2-port EtherCAT junction can be applied in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration...

Technical Specifications

EK1122 Task within EtherCAT system coupling of EtherCAT junctions Transmission medium Ethernet/EtherCAT cable (min. Cat.5), shielded Distance between stations 100 m (100BASE-TX) Protocol EtherCAT Propagation delay approx. 1 µs Transmission rate 100 Mbit/s Configuration not required Bus interface 2 x RJ45 Power supply from E-bus Power contacts no Current consumption typ. 220 mA Weight approx. 75 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, cFMus Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc Technical data Housing data To

Availability: regular delivery
