Beckhoff EK1110 | Beckhoff Ethercat Terminals

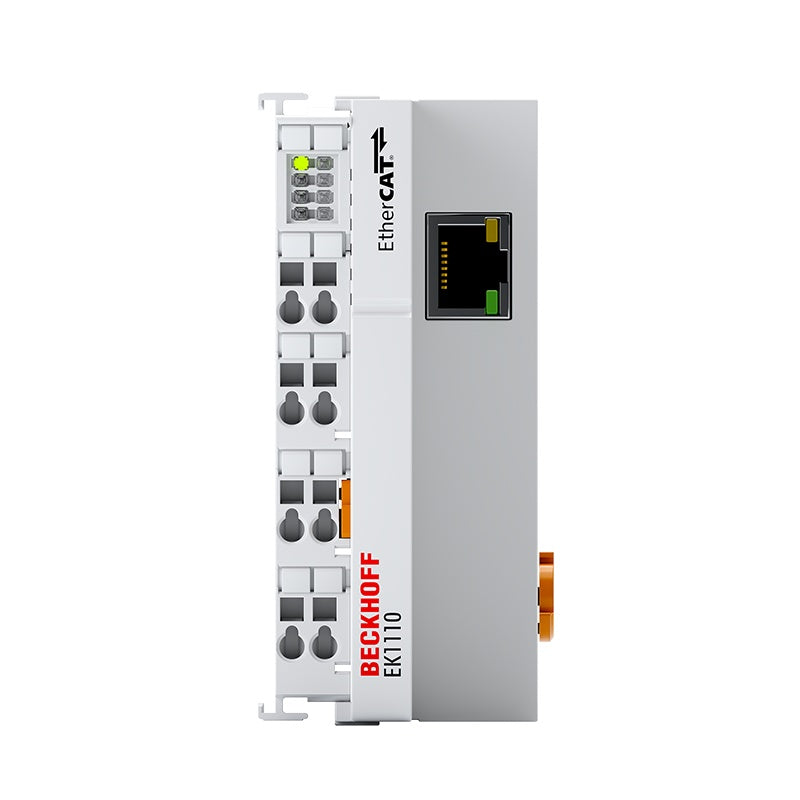

EK1110 | EtherCAT extension

The EK1110 EtherCAT extension is placed at the end of an EtherCAT Terminal segment or an Embedded PC from the CX series and offers the option of extending...

Technical Specifications

EK1110 Task within EtherCAT system conversion of the E-bus signals to 100BASE-TX Ethernet for extension of the EtherCAT network Transmission medium Ethernet/EtherCAT cable (min. Cat.5), shielded Distance between stations 100 m (100BASE-TX) Protocol any EtherCAT protocol Propagation delay approx. 1 µs Transmission rate 100 Mbit/s Configuration not required Bus interface 1 x RJ45 Power supply from E-bus Current consumption E-bus typ. 130 mA Electrical isolation 500 V (supply voltage/Ethernet) Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4

Availability: regular delivery
