Beckhoff EJ9400 | Beckhoff Ethercat Plug In Modules

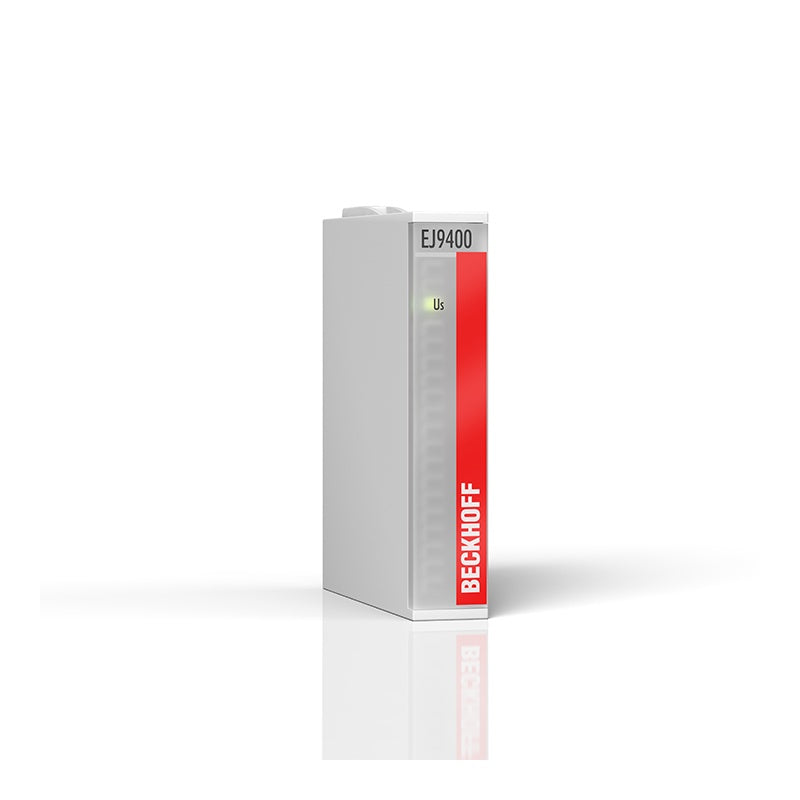

EJ9400 | EtherCAT plug-in module, power supply for E-bus, 24 V DC, 2.5 A

The EJ9400 EtherCAT plug-in module is applied in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between...

Technical Specifications

EJ9400 Technology power supply module for E-bus Short-circuit proof – Input voltage 24 V DC (-15%/+20%) Input current approx. 10 mA + (E-bus/6.25) Max. output current 2.5 A Current consumption E-bus – Current consumption from U S 10 mA + (∑ E-bus current/7.2) Electrical isolation – Diagnostics in the process image – Weight approx. 30 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/see documentation Approvals/markings CE, UL Technical data Housing data To top Housing data EJ_12_16pin_Code78 Weight approx. 30 g Protection rating IP20 Material polycarbonate Dimensions | Width (single) 12 mm Dimensions | Height 66 mm Dimensions | Depth 55 mm Installation 2 x 20-pin socket str

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
