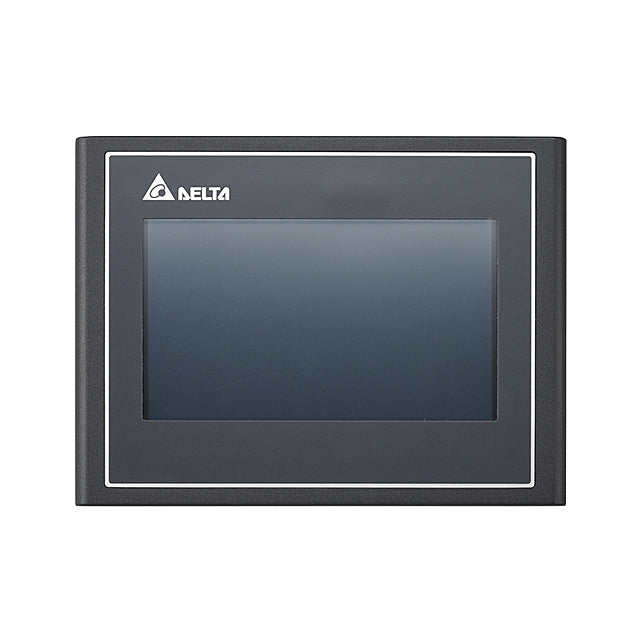

Model: DOP-103WQ
| Parameter | Value |
|---|---|
| Brand | Delta |
| Series | DOP-100 Series |
| Display | 4.3-inch TFT LCD |
| Resolution | 480 x 272 |
| Colors | 65536 colors |
| CPU | Cortex-A8 800 MHz |
| Memory | 256 MB Flash / 512 MB RAM |
| Touch Panel | 4-wire resistive, >10 million times |
| Ethernet | 1 x 10/100 Mbps |
| Serial Ports | COM1: RS-232/RS-485; COM2: RS-422/RS-485 |
| USB | USB Slave + USB Host |
| Protection Rating | IP65 (front panel) |
| Power Supply | DC 24V (±15%) |
| Power Consumption | 5.8 W max |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Dimensions | 137 x 103 x 37.1 mm |
| Weight | Approx. 280 g |
| Certification | CE / UL |
Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.
Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
