Beckhoff CX9020-0115 | Beckhoff Embedded Pcs

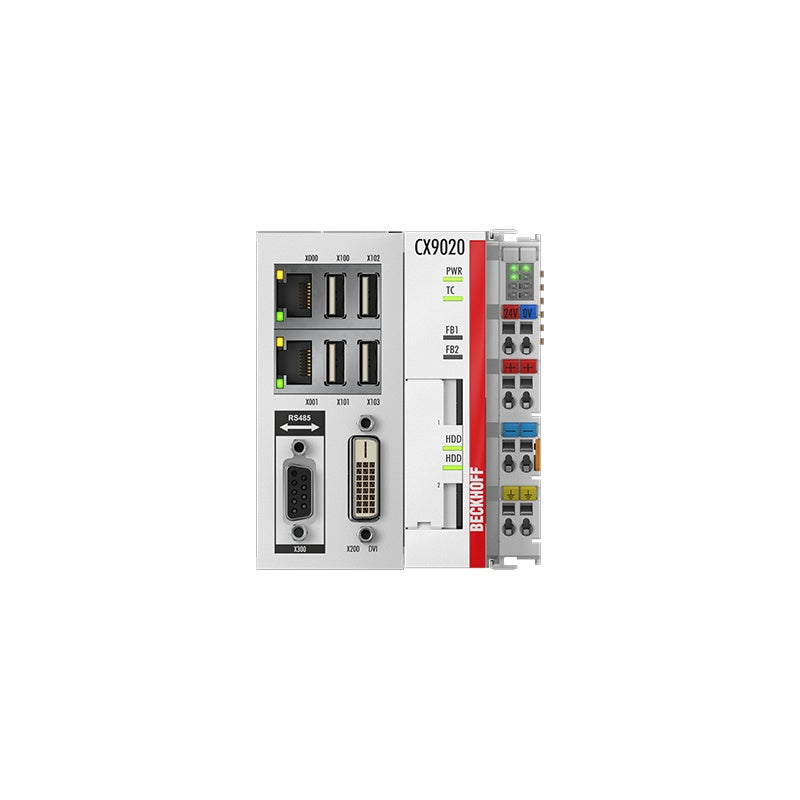

CX9020 | Embedded PC with Arm® Cortex®-A8

The CX9020 is a compact, DIN rail-mountable Ethernet control system with 1 GHz Arm® Cortex®-A8 CPU. The connection for the Beckhoff I/O systems is directly...

Technical Specifications

CX9020 Processor Arm ® Cortex ® -A8, 1 GHz Number of cores 1 Flash memory 2 x slot for microSD card, 512 MB included (optionally expandable) Main memory 1 GB DDR3 RAM (not expandable) Interfaces 2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface Cooling passive Diagnostics LED 1 x power, 1 x TC status, 2 x flash access, 2 x bus status Clock internal battery-backed clock for time and date (battery exchangeable) Operating system Windows Embedded Compact 7, English Control software TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no NOVRAM 128 kB Current supply E-bus/K-bus 2 A Max. power consumption 5 W Max. power consumption (with loading UPS) 9 W Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A) Weight approx. 590 g Dimensions (W x H x D) 84 mm x 100 mm

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX9240

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
