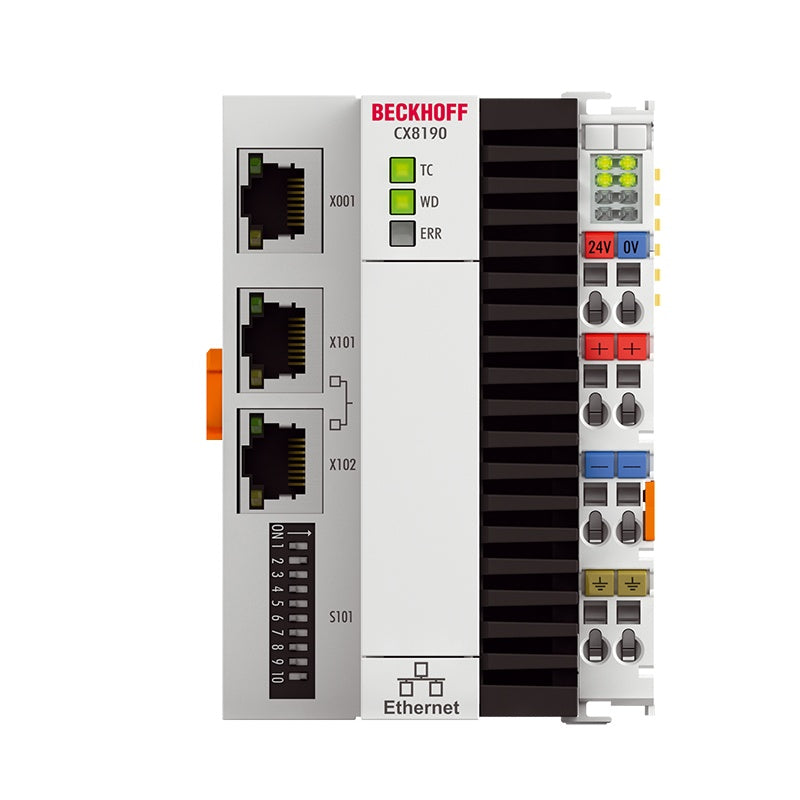

CX8190 | Embedded PC with Arm® Cortex®-A9 and 2-port Ethernet switch

The CX8190 is a controller with two Ethernet ports, one of which is switched to two RJ45 sockets. It supports protocols such as real-time Ethernet, ADS...

Technical Specifications

CX8190 Processor Arm ® Cortex ® -A9, 800 MHz Number of cores 1 Flash memory slot for microSD card, 512 MB included (optionally expandable) Main memory 512 MB DDR3 RAM (not expandable) 1-second UPS integrated (1 MB on microSD card) Interfaces 1 x RJ45 10/100 Mbit/s, 1 x bus interface Cooling passive Bus interface 2 x RJ45 (switched) Transmission rate 100 Mbit/s Diagnostics LED 1 x TC status, 1 x WD, 1 x error Clock internal battery-backed clock for time and date (battery behind the front flap, exchangeable) Operating system Windows Embedded Compact 7 Control software TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 2 A Max. power consumption 4 W Max. power consumption (with loading UPS) 9 W Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A) Dimensions (W x H x D) 71 mm x 100 mm x

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX8290
