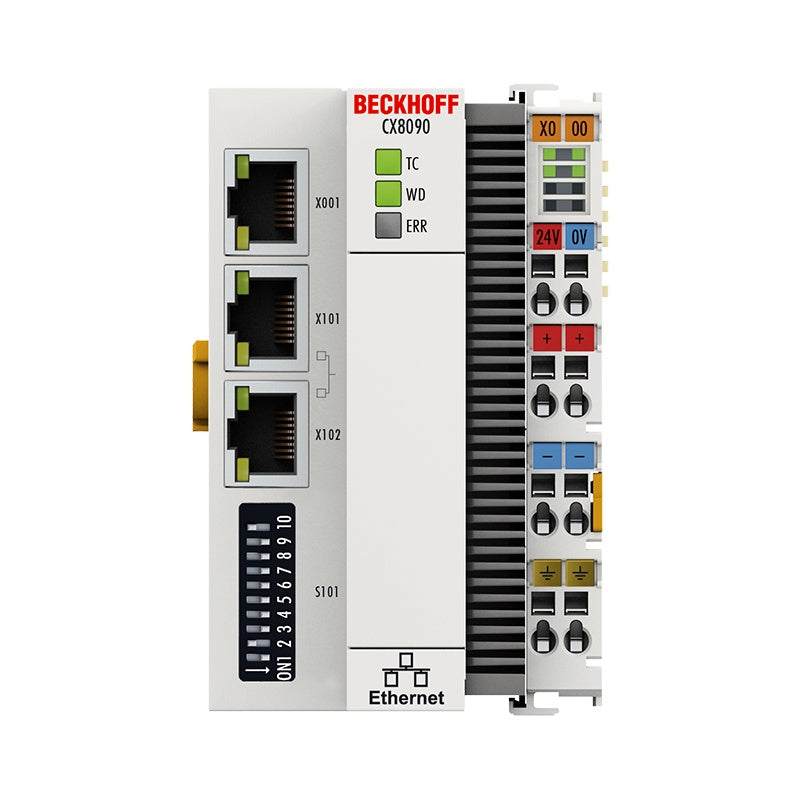

CX8090 | Embedded PC with Arm9™ and 2-port Ethernet switch

The CX8090 is a control system with a switched Ethernet port. It supports protocols such as real-time Ethernet, ADS UDP/TCP, Modbus TCP client/server or...

Technical Specifications

CX8090 Processor Arm9™, 400 MHz Number of cores 1 Flash memory slot for microSD card, 512 MB included (optionally expandable) Main memory 64 MB DDR2 RAM (not expandable) 1-second UPS integrated (1 MB on microSD card) Programming languages IEC 61131-3 Web visualization yes Online change yes Up/down load code yes/yes Interfaces 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface Cooling passive Bus interface 2 x RJ45 (switched) Transmission rate 100 Mbit/s Diagnostics LED 1 x TC status, 1 x WD, 1 x error Clock internal battery-backed clock for time and date (battery behind the front flap, exchangeable) Operating system Windows Embedded CE 6 Control software TwinCAT 2 PLC I/O connection E-bus or K-bus, automatic recognition Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 2 A Web-based management yes Max. power consumption 3 W Max.

Availability: regular delivery (not recommended for new projects) | recommended alternative: CX8290
