Beckhoff CX7000 | Beckhoff Embedded Pcs

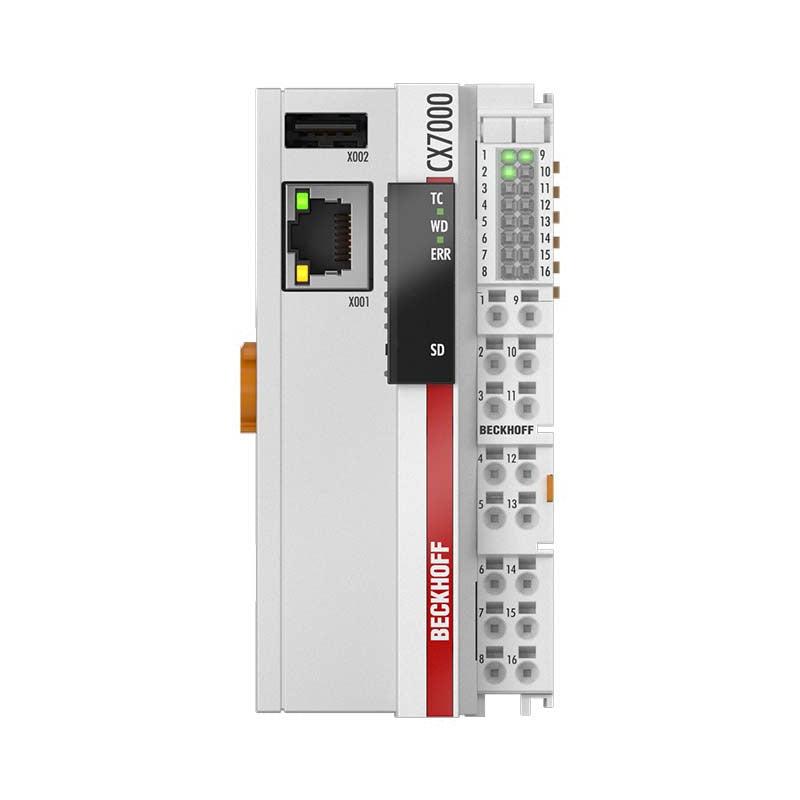

CX7000 | Embedded PC with Arm® Cortex®-M7 and integrated I/Os

The CX7000 Embedded PC has an Arm® Cortex®-M7 single-core processor with 480 MHz. In the basic configuration, the CX7000 has a slot for a microSD card ...

Technical Specifications

CX7000 Processor Arm ® Cortex ® -M7, 480 MHz Number of cores 1 Flash memory slot for microSD card, 512 MB included (optionally expandable) Main memory 32 MB SDR (not expandable) Number of inputs 8 multi-functional inputs (24 V DC) Number of outputs 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire technique) NOVRAM 4 kB Interfaces 1 x RJ45 10/100 Mbit/s, 1 x USB Cooling passive Bus interface – Transmission rate – Diagnostics LED 1 x TC status, 1 x WD, 1 x error, 1 x flash access Clock internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) Operating system TwinCAT/RTOS Control software TwinCAT 3 runtime (XAR) I/O connection E-bus or K-bus, automatic recognition Power supply 24 V (-15%/+20%) UPS OCT-capable no Current supply E-bus/K-bus 1.5 A Max. power consumption Max. power consumption E-bus/K-bus 7.5 W Dimensions (W x H x D) 49 mm x 100 mm x 73 mm W

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
