Beckhoff CX2100-0904 | Beckhoff Embedded Pcs

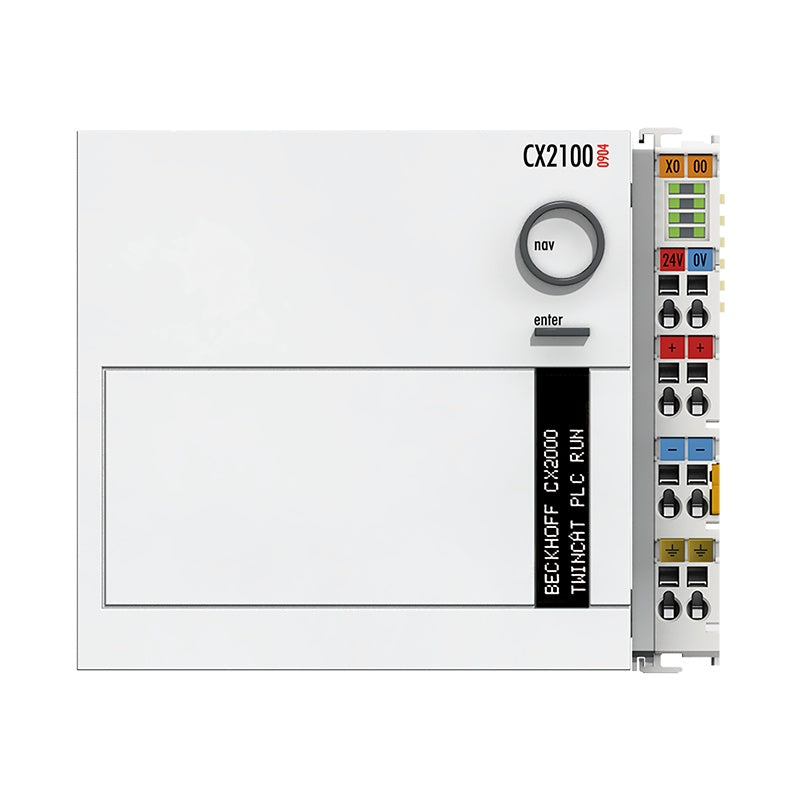

CX2100-0904 | Power supply unit for CX20xx, 45 W, internal UPS

The CX2100-0904 power supply and UPS module is designed for supplying power to the components (CPU modules, system and extension modules) of a CX2033 system...

Technical Specifications

CX2100-0904 Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Max. power output 45 W I/O connection E-bus or K-bus, automatic recognition Current supply E-bus/K-bus 2 A UPS capacitively integrated Capacity 75 As Connection type spring-loaded technology (adapter terminal) Display FSTN display 2 lines x 16 characters of text, illuminated Diagnostics LED 1 x PWR, 1 x I/O Run, 1 x I/O Err Max. power loss 3.5 W Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A) Dimensions (W x H x D) 118 mm x 100 mm x 91 mm Weight approx. 1025 g Storage temperature -25…+60°C Operating temperature -25…+50°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protection rating IP20 Approvals/markings CE, UL Loading content ... Show more Loading content ... Show more Loading content ... Show mor

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
