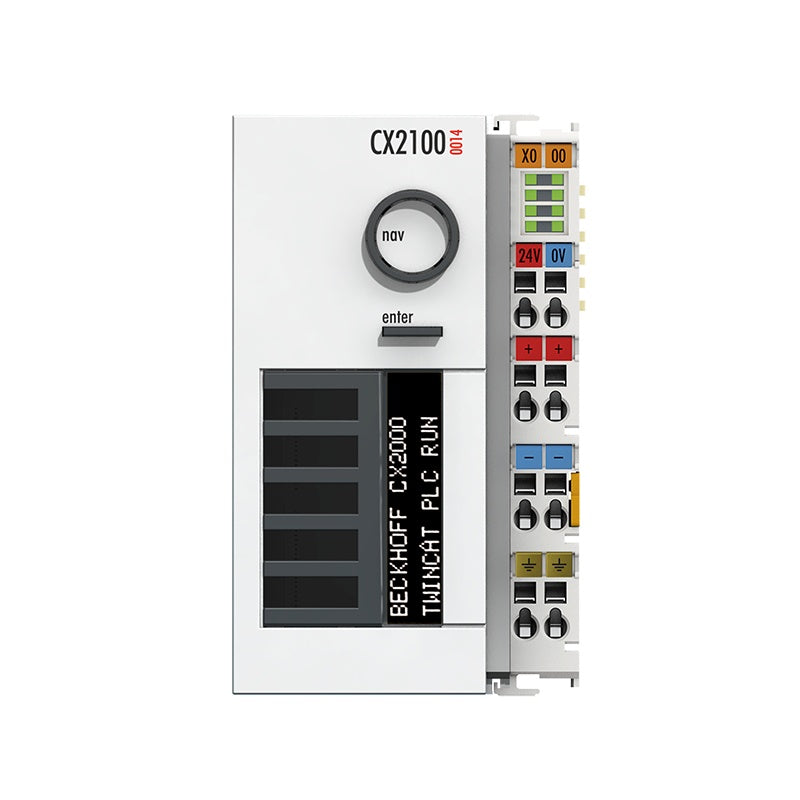

CX2100-0014 | Power supply unit for CX20xx, 130 W

The CX2100-0014 power supply module is designed for supplying power to the components (CPU modules, system and extension modules) of a CX20xx system. The power...

Technical Specifications

CX2100-0014 Power supply 24 V DC (-15%/+20%) UPS OCT-capable no Max. power output 130 W I/O connection E-bus or K-bus, automatic recognition Current supply E-bus/K-bus 2 A UPS – Capacity – Connection type spring-loaded technology (adapter terminal) Display FSTN display 2 lines x 16 characters of text, illuminated Diagnostics LED 1 x PWR, 1 x I/O Run, 1 x I/O Err Max. power loss 3.5 W Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A) Dimensions (W x H x D) 60 mm x 100 mm x 91 mm Weight approx. 550 g Storage temperature -40…+85°C Operating temperature -25…+60°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protection rating IP20 Approvals/markings CE, UL Loading content ... Show more Loading content ... Show more Loading content ... Show more Loading content ... Show

Availability: regular delivery
