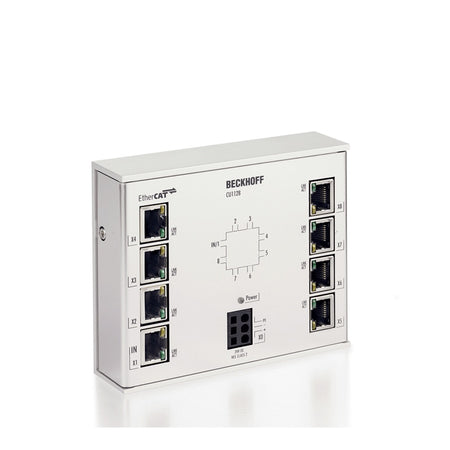

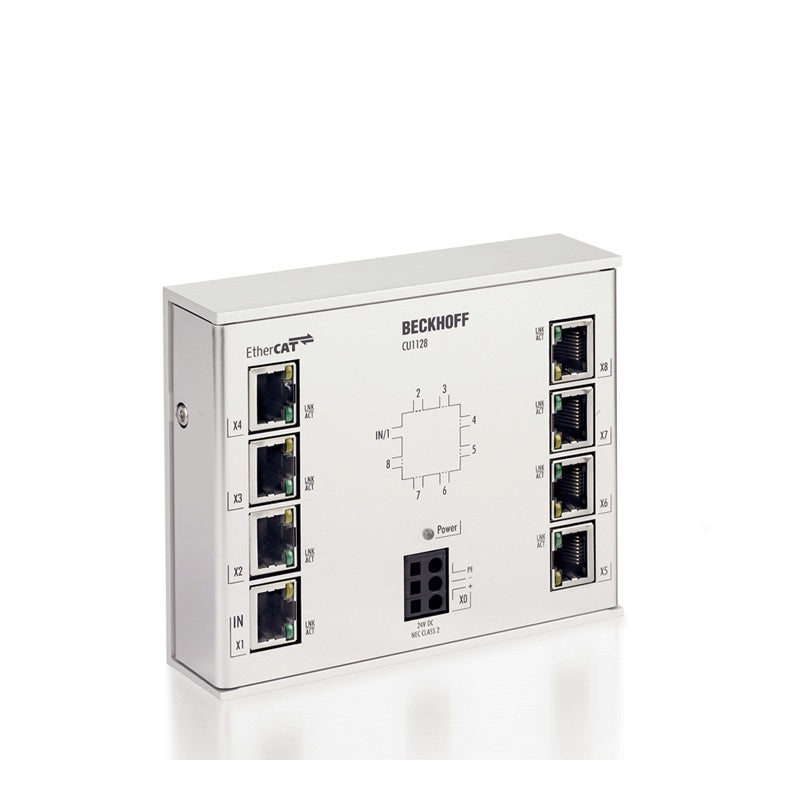

Beckhoff CU1128 | Beckhoff Infrastructure Components

CU1128 | Infrastructure, 8-port junction, EtherCAT, 100 Mbit/s, 24 V DC, RJ45

Line, tree or star: EtherCAT supports almost any topology. If a star topology requires several branches at a particular point, the 8-way CU1128 EtherCAT...

Technical Specifications

CU1128 Task within EtherCAT system coupling of EtherCAT junctions Transmission medium Ethernet/EtherCAT cable (min. Cat.5), shielded Bus interface 8 x RJ45 Distance between stations max. 100 m (100BASE-TX) Protocol EtherCAT Propagation delay approx. 1 µs per port Transmission rate 100 Mbit/s Configuration not required Power supply 24 (18…30) V DC, 3-pin connection (+, -, PE) Current consumption 24 V DC typ. 185 mA Dimensions (W x H x D) 122 mm x 100 mm x 38 mm Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, UL Loading content ... Show more Loading content ... Show more Loading content ... Show more Loading content ... Show more © Beckhoff Aut

Availability: regular delivery
