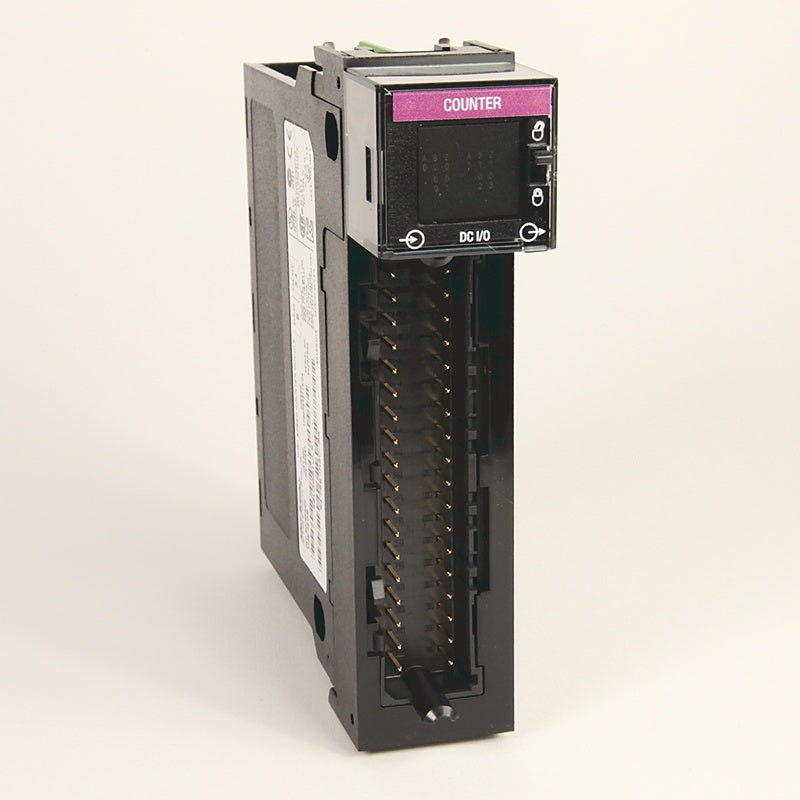

Allen-Bradley 1756-HSC - ControlLogix High Speed Counter Module

ControlLogix High Speed Counter Module

2 Channel / 4 Output High Speed Counter (36 Pin)

Specifications

• Conducted RF immunity: 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
• Counter, max: 1 mhz
• Counting frequency, max: 1000 khz
• Count range: 0...16, 777, 214
• Current draw: 300mA @ 5.1V, 3mA @ 24V
• Current limit: <4 A
• Debounce filter, max: 70 Hz
• Digital inputs configurable: true
• Digital outputs configurable: false
• EFT/B immunity: ¡À4kV @ 5kHz on power ports, ¡À4kV @ 5kHz on signal ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• Encoder, max: 250 khz
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Input current, min: 4 mA
• Input current, nom: 15 mA
• Input frequency, max: 1 MHz in counter modes (A input), 500 kHz in rate measurement mode (A input), 250 kHz in encoder mode (A/B inputs, X1 or X4), 70 Hz with filter enabled
• Inputs per counter: 3 (A, B, Z for gate/reset)
• Isolation voltage: 125V (continuous), basic insulation type, input group-to-backplane, 30V (continuous), basic insulation type, input group-to-input group
• Load current per point, min: 5V ops: 3mA @ 12/24V ops: 40 mA
• Module keying: Electronic, software configurable
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4
• Number of counters: 2 counters
• Off-state leakage current per point, max: 300 ¦ÌA
• On-state voltage drop, max: 0.55 V
• Operating temperature: 0 to 60 ¡ãC
• Operating voltage: 5V ops: 4.5...5.5V DC @ 12/24V ops: 10...26.4V DC
• Output control: Up to two outputs are assigned to each counter channel, each output can have two ¡®turn-on¡¯ and ¡¯turn-off¡¯ preset values
• Output current rating, per point: 20mA @ 4.5...5.5V DC, 1.0A @ 10...31.2V DC
• Output delay time: OFF to ON: 20 ¦Ìs nominal, 50 ¦Ìs maximum, ON to OFF: 60 ¦Ìs nominal, 300 ¦Ìs maximum
• Outputs: 4 (2 points/group)
• Power dissipation, max: 5.6 W @ 60 ¡ãC(140 ¡ãF)
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Rate measurement, max: 500 khz
• Relative humidity: 5...95% noncondensing
• Reverse polarity protection: Yes (if wired incorrectly, module outputs can be permanently disabled.)
• RTB keying: User-defined mechanical
• Shock: Operating: 30 G, Non operating: 50 G
• Short circuit protection: Electronic (remove overload and toggle On/Off to restore.)
• Short-circuit protection, outputs available: false
• Slot width: 1
• Suitable for safety functions: false
• Surge current per point: 2 A for 10 ms every 1 s @ 60 ¡ãC (140 ¡ãF)
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on power ports, ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on signal ports, ¡À2 kV line-earth (CM) on shielded ports
• Surrounding air temperature, max: 60 ¡ãC
• Thermal dissipation: 19.1 btu/h
• Total backplane power: 1.6 W
• Type of electric connection: Screw connection
• Vibration: 2 G @ 10...500 Hz
• Voltage type of supply voltage: DC
• Wire category: 2 on signal ports, 1 on power ports
