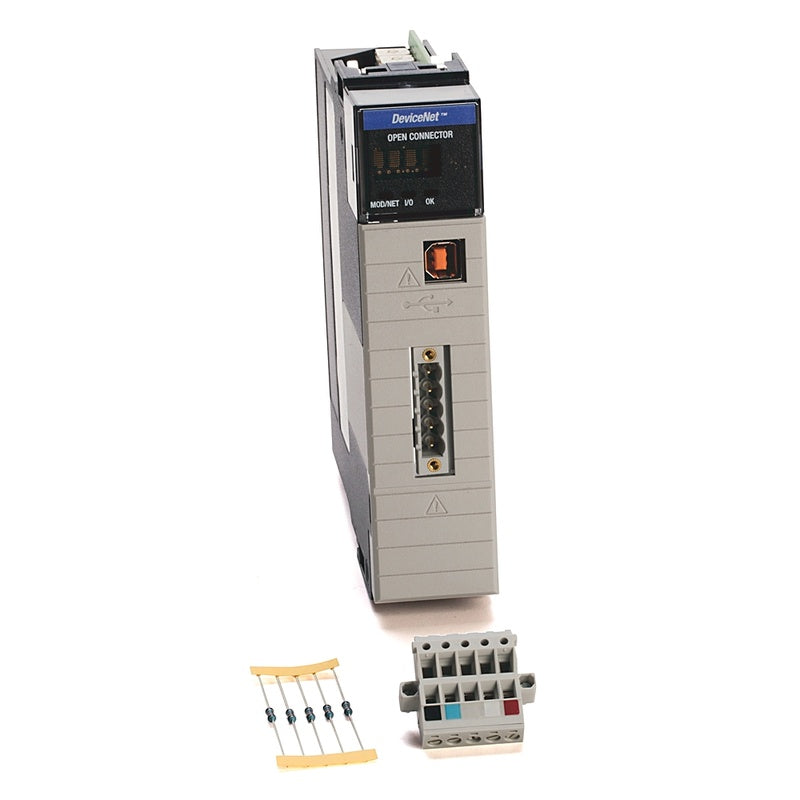

Allen-Bradley 1756-DNB - ControlLogix DeviceNet Comms Module

SKU: 1756-DNB
(3)
$155.18
-13% $178.46 $155.18
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix DeviceNet Comms Module

DeviceNet Bridge/Scanner Module

Specifications

  • Number Of Channels: 1
  • Communication rate: 125 Kbps (500 m max), 250 Kbps (250 m max), 500 Kbps (100 m max)
  • Conducted RF immunity: 10Vrms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Current draw: 400mA @ 5.1V DC, 0mA @ 24V DC
  • DeviceNet connector torque: 0.56 nm
  • DeviceNet current draw: 60mA @ 24V DC
  • DeviceNet port: 1 DeviceNet open-style 5- or 10-pin linear plug
  • DeviceNet power: To comply with the CE low voltage directive (LVD), the DeviceNet network must be powered from a source compliant with the safety extra low voltage (SELV) or protected extra low voltage (PELV). To comply with UL restrictions, the DeviceNet network must be
  • DeviceNet voltage range: 11...25V DC CL 2/SELV
  • EFT/B immunity: ¡À3kV @ 5kHz on DeviceNet ports
  • Emissions: CISPR 11: Class A
  • Enclosure type rating: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • IO link master: false
  • Isolation voltage: 50V (continuous), basic insulation type, DeviceNet network to backplane, Type tested at 853V AC @ 60s, No isolation between USB and backplane,
  • Module location: Chassis based, any slot
  • Number of nodes, max: 64 nodes
  • Operating temperature: 0 to 60 ¡ãC
  • Power dissipation: 3.5 W
  • Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
  • Radio standard Bluetooth: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Radio standard Wi-Fi 802.11: false
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G, Non operating: 50 G
  • Slot width: 1
  • Storage temperature: -40 ¡ãC
  • Suitable for safety functions: true
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: true
  • Supporting protocol for DeviceNet Safety: true
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: ¡À2 kV line-earth (CM) on ControlNet ports
  • Surrounding air temperature, max: 60 ¡ãC
  • Thermal dissipation: 11.9 btu/h
  • Vibration: 2 G @ 10...500 Hz
  • Wiring category: 1 - On DeviceNet ports, 3 - On USB ports
  • With optical interface: false
  • With potential separation: false
  • Product Series: E
