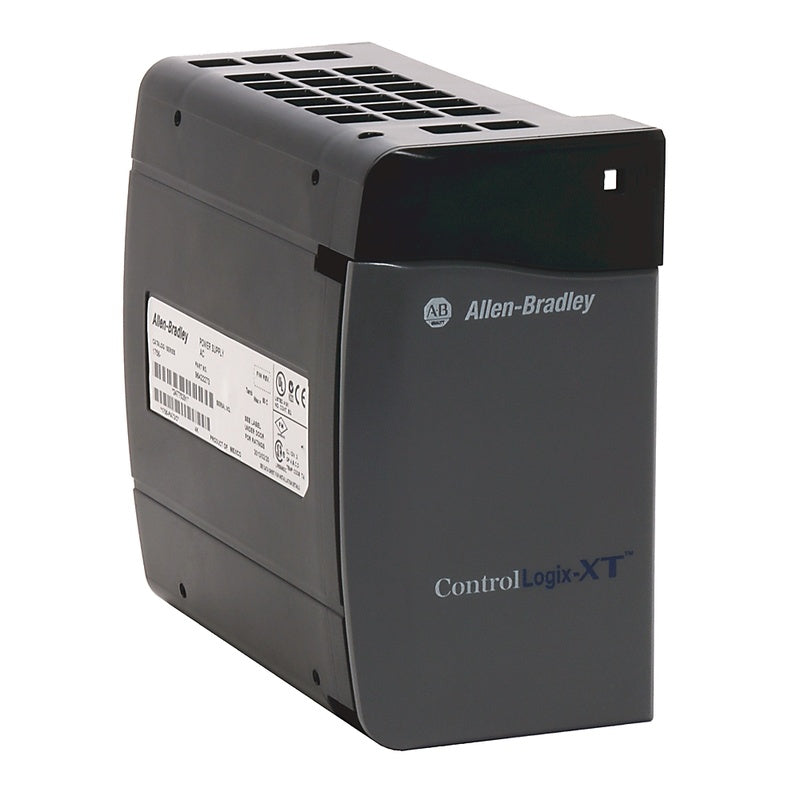

Allen-Bradley 1756-PB30XT - ControlLogix DC XT Power Supply

SKU: 1756-PB30XT
(2)
$799.00
-80% $4,096.15 $799.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix DC XT Power Supply

ControlLogix XT, Power Supply, 18-32V DC Input, 8 Amp at 5V DC Output

Specifications

  • Connection Cables: None required
  • Redundant Configuration: false
  • Conductor screw torque: 0.565 nm
  • Current capacity: 6A @ 5.1V DC
  • Depth: 145 mm
  • Enclosure type rating: None (open-style)
  • Height: 140 mm
  • Input power, max: 50 W
  • Input voltage at DC: 18 V
  • Input voltage, nom: 24V DC
  • Inrush current, max: 30 A
  • ISAGX: false
  • Operating temperature: -25 ¡ãC < Ta < +70 ¡ãC (-13 ¡ãF < Ta < +158 ¡ãF)
  • Output voltage at DC: 5.1 V
  • Power output: 30 W
  • Power output, max: 30 W @ -25...+70 ¡ãC (-13...+158 ¡ãF)
  • Redundancy capable: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Suitable for safety functions: false
  • Type of voltage (input voltage): DC
  • Vibration: 2 G @ 10...500 Hz
  • Voltage variation: IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ¡À20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports
  • Weight: 0.77 kg
  • Width: 78 mm
  • Wire category: 1 - on power ports
  • Wire size: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max
  • Product Series: A
