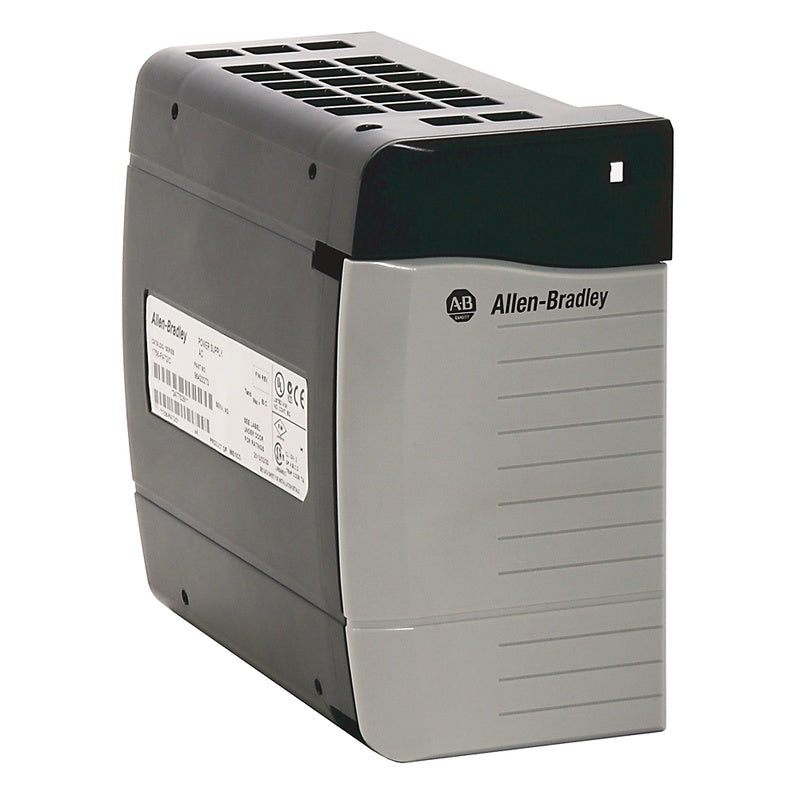

Allen-Bradley 1756-PB50 - ControlLogix DC Power Supply
Allen-Bradley 1756-PB50 - ControlLogix DC Power Supply

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 1756-PB50 - ControlLogix DC Power Supply

SKU: 1756-PB50
(2)
$1,785.23
-1% $1,799.45 $1,785.23
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix DC Power Supply

ControlLogix, Power Supply, 18-32V DC Input, 8 Amp at 5V DC Output

Specifications

  • Output Voltage and Current: 5V DC @ 8A, 3.3V DC @ 2A, 1.2V DC @ 1.5A, 24V DC @ 2.5A
  • Conductor screw torque: 0.565 nm
  • Current capacity: 8A @ 50¡ãC (122 ¡ãF) @ 5.1V DC @ 6A @ 60 ¡ãC (140 ¡ãF) @ 5.1V DC
  • Depth: 145 mm
  • Enclosure type rating: None (open-style)
  • Height: 140 mm
  • Hold-up time: 30 ms @ 18...32V DC, 60 W, 40 ms @ 18...32V DC, 50 W
  • Input power, max: 85 W @ 50 ¡ãC (122 ¡ãF), 70 W @ 60 ¡ãC (140 ¡ãF)
  • Input voltage at DC: 18 V
  • Input voltage, nom: 24V DC
  • Inrush current, max: 30 A
  • ISAGX: false
  • Operating temperature: 0 ¡ãC < Ta < +60 ¡ãC (+32 ¡ãF < Ta < +140 ¡ãF)
  • Output voltage at DC: 5.1 V
  • Power output: 60 W
  • Power output, max: 60 W @ 0...50 ¡ãC (32...122 ¡ãF), 50 W @ 0...60 ¡ãC (32...140 ¡ãF)
  • Redundancy capable: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Suitable for safety functions: false
  • Type of output voltage: DC
  • Type of voltage (input voltage): DC
  • Vibration: 2 G @ 10...500 Hz
  • Voltage variation: IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ¡À20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports
  • Weight: 0.77 kg
  • Width: 78 mm
  • Wire category: 1 - on power ports
  • Wire size: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max
  • Product Series: A

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
★ ★ ★ ★ ★
4.5 / 5 (2 review)
