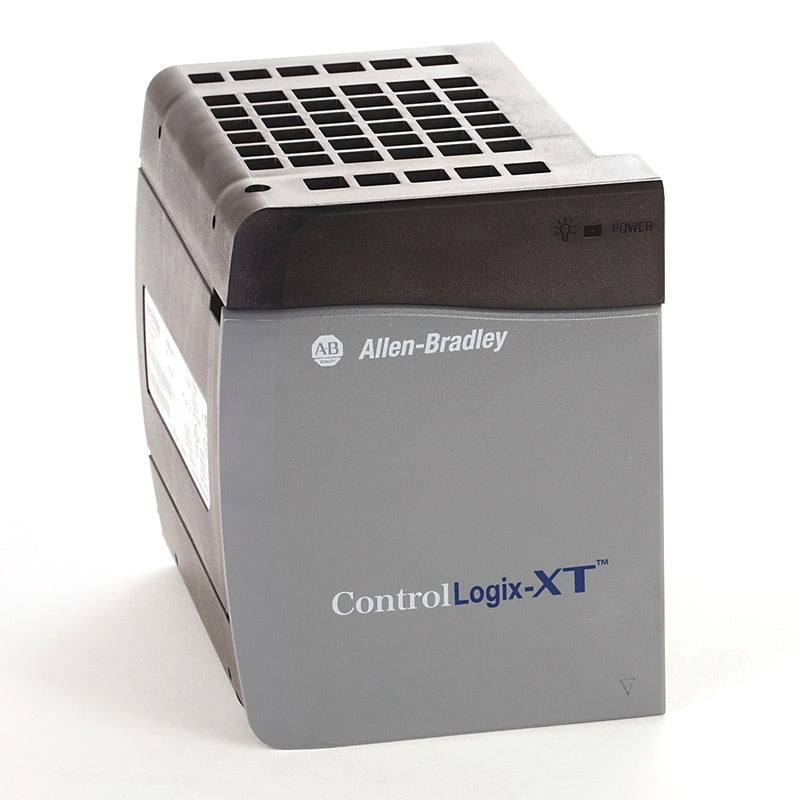

Allen-Bradley 1756-PAXT - ControlLogix AC XT Power Supply
Allen-Bradley 1756-PAXT - ControlLogix AC XT Power Supply

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 1756-PAXT - ControlLogix AC XT Power Supply

SKU: 1756-PAXT
(5)
$474.00
-84% $2,873.85 $474.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix AC XT Power Supply

ControlLogix, 120/240V AC Power Supply, Logix XT

Specifications

  • Frequency Rating: 47...63Hz
  • Output Voltage and Current: 5V DC @ 8A, 3.3V DC @ 4A, 1.2V DC
  • Conductor screw torque: 0.565 nm
  • Current capacity: 8A @ 5.1V DC
  • Depth: 145 mm
  • Enclosure type rating: None (open-style)
  • Height: 140 mm
  • Input frequency: 47 Hz
  • Input power, max: 82VA/64 W
  • Input voltage at AC 50 Hz: 85 V
  • Input voltage at AC 60 Hz: 85 V
  • Input voltage, nom: 120/240V AC
  • Inrush current, max: 20 A
  • ISAGX: false
  • Operating temperature: -25 ¡ãC < Ta < +70 ¡ãC (-13 ¡ãF < Ta < +158 ¡ãF)
  • Output voltage at DC: 5.1 V
  • Power output: 42 W
  • Power output, max: 42 W @ -25...+70 ¡ãC (-13...+158 ¡ãF)
  • Redundancy capable: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Suitable for safety functions: false
  • Type of voltage (input voltage): AC
  • Vibration: 2 G @ 10...500 Hz
  • Voltage variation: IEC 61000-4-11: 30% dips for 1 period at 0¡ã and 180¡ã on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ¡À10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
  • Weight: 0.95 kg
  • Width: 112 mm
  • Wire category: 1 - on power ports
  • Wire size: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max
  • Product Series: B
