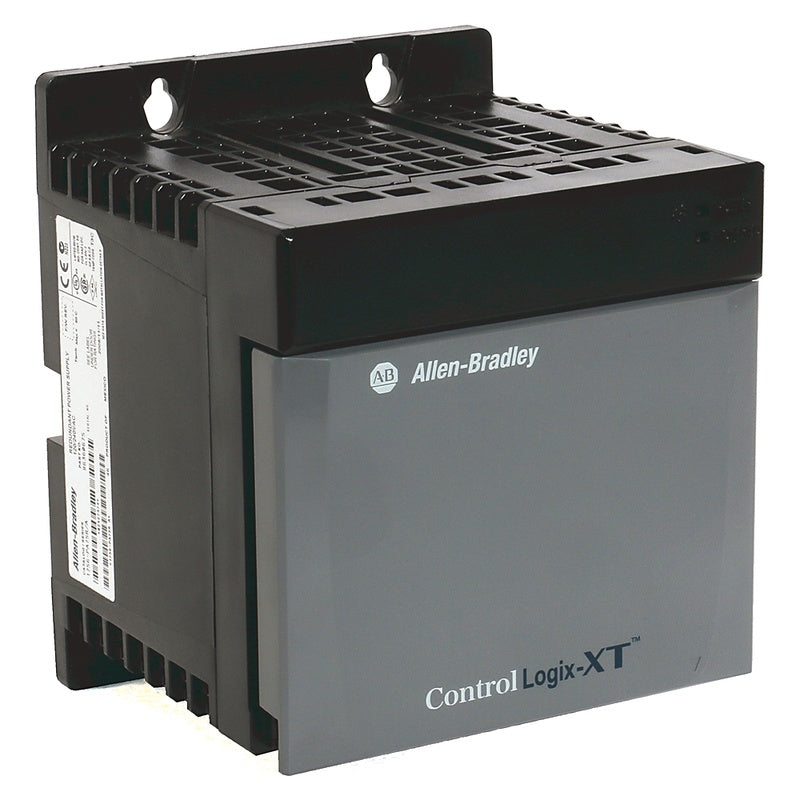

Allen-Bradley 1756-PA75R - ControlLogix AC Redundant Power Supply

ControlLogix AC Redundant Power Supply

ControlLogix, 85-265 VAC Redundant Power Supply

Specifications

• Connection Cables: 1756-CPR2
• Frequency Rating: 47...63Hz
• Output Voltage and Current: 5V DC @ 13A, 3.3V DC @ 4A,
• Redundant Configuration: true
• Annunciator power: 240V AC 50/60 Hz, 240V DC @ 50mA, resistive only
• Conductor screw torque: 0.565 nm
• Current capacity: 4A @ 3.3V DC
• Depth: 137 mm
• Enclosure type rating: None (open-style)
• Height: 175 mm
• Hold-up time: 2 cycles @ 60 Hz, 2 cycles @ 50 Hz
• Input frequency: 47 Hz
• Input power, max: 120VA/115 W
• Input voltage at AC 50 Hz: 85 V
• Input voltage at AC 60 Hz: 85 V
• Input voltage, nom: 120/240V AC
• Inrush current, max: 20 A
• ISAGX: false
• Operating temperature: 0 to 60 ¡ãC
• Output voltage at DC: 5.1 V
• Pilot duty rating: Annunciator - not rated
• Power output: 75 W
• Power output, max: 75 W @ 0...60 ¡ãC (32...140 ¡ãF)
• Redundancy capable: false
• Relative humidity: 5...95% noncondensing
• Shock: Operating: 30 G
• Suitable for safety functions: false
• Type of output voltage: DC
• Type of voltage (input voltage): AC
• Vibration: 2 G @ 10...500 Hz
• Voltage variation: IEC 61000-4-11: 30% dips for 1 period at 0¡ã and 180¡ã on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ¡À10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
• Weight: 1.45 kg
• Width: 145 mm
• Wire category: 3 - on annunciator ports, 1 - on power ports, 3 - on 1756-CPR2 connections
• Wire size: Power: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max, Annunciator: 0.25¡­2.5 mm2 (22 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulat
• Product Series: A
