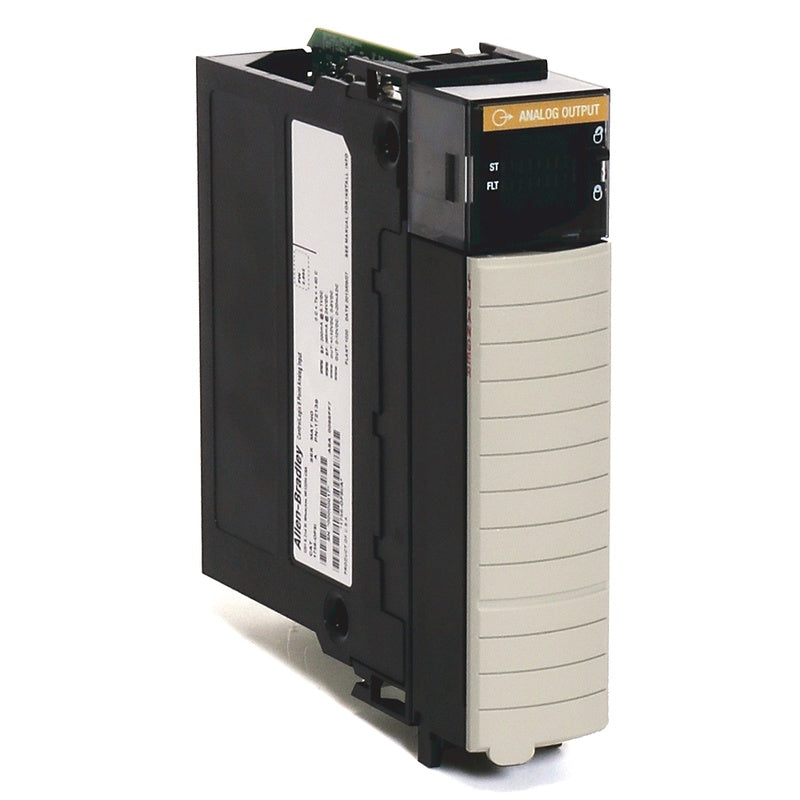

Allen-Bradley 1756-OF8H - ControlLogix 8 Pt A/O I or V HART Module

ControlLogix 8 Pt A/O I or V HART Module

Analog Output HART - Current/Voltage 8 Pts (20 Pin)

Specifications

• Display: Module Health, In Calibration,Mode
• Isolation: None between channels (Single,Ended)
• Number Of Channels: 8
• Output Signal: +/- 10.4V, 0-20 mA, 4-20 mA
• Special Features: Supports HART Protocol
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Calibrated accuracy: Voltage: Better than 0.1% of range @ 25 ¡ãC (77 ¡ãF) with HART disabled, Current: Better than 0.15% of range @ 25 ¡ãC (77 ¡ãF) with HART disabled
• Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
• EFT/B immunity: ¡À2kV @ 5kHz on signal ports
• Emissions: IEC 61000-6-4
• Enclosure type rating: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Gain drift with temperature: Voltage: 20 ppm/¡ãC, Current: 35 ppm/¡ãC
• Input conversion method: Successive approximation
• Input, current: true
• Input, resistance thermometer: false
• Input, resistor: false
• Input signal, configurable: true
• Input, thermocouple: false
• Input, voltage: true
• Isolation voltage: 50V (continuous), basic insulation type, output channels to backplane, No isolation between individual output channels type tested at 1500V AC @ 60s
• Load reactance: Voltage: 1 ¦ÌF, Current: 10 ¦ÌH
• Module error: Voltage: 0.15% of range, Current: 0.3% of range
• Module HART scan time: Analog: 12 ms, minimum, floating point, HART: typically 1 s per HART channel enabled. Estimate 10 s if all 8 channels have HART enabled, Pass through messages, handheld communicators, sary masters, communication errors, or configuration changes can s
• Module keying: Electronic, software configurable
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4
• Offset drift: 100 ¦ÌV/¡ãC, 200 nA/¡ãC
• Open circuit detection time: Current output only (output must be set to <0.1 mA)
• Operating temperature: 0 ¡ãC
• Output conversion method: R-Ladder DAC, monotonicity with no missing codes
• Output, current: false
• Output range: -10¡­10V, 0¡­20 mA, 4¡­20 mA
• Outputs: Eight voltage or current, one HART modem per module
• Output signal configurable: false
• Output, voltage: false
• Overvoltage protection: ¡À24V DC
• Power dissipation: 4.92 W
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Relative humidity: 5...95% noncondensing
• Resolution: 15...16 bit for all ranges
• RTB keying: User-defined mechanical
• Settling time: Current (no HART): <23 ms to 95% with resistive loads, current (with HART): <37 ms to 95% with resistive loads, voltage: <8.5 ms to 95% with resistive loads
• Shock: Operating: 30 G, Non operating: 50 G
• Slot width: 1
• Suitable for safety functions: false
• Surge transient immunity: ¡À2kV line-earth (CM) on shielded ports
• Surrounding air temperature, max: 60 ¡ãC
• Terminal block torque specifications: 1756-TBNH: 1.36 Nm (12 in-lb.)
• Thermal dissipation: 16.78 BTU/h
• Total backplane power: 6.54 W
• Type of electric connection: Screw-/spring clA connection
• Vibration: 2 G @ 10...500 Hz
• Voltage and current ratings: Backplane: 5.1V DC @ 230mA, 24V DC @ 230mA, Output voltage: -10...+10.4V, Output current: 4...20 mA
• Wire category: 2 - on signal ports
• Wire size: 1756-TBNH: Single wire connection: 0.33...2.1 mm2 (22...14 AWG) solid or stranded copper wire, rated at 105 ¡ãC (221 ¡ãF) or greater, 1.2 mm (3/64 in.) insulation maximum, 1756-TBNH: Double wire connection: 0.33...1.3 mm2 (22...16 AWG) solid or stranded cop
• Wire type: Copper
