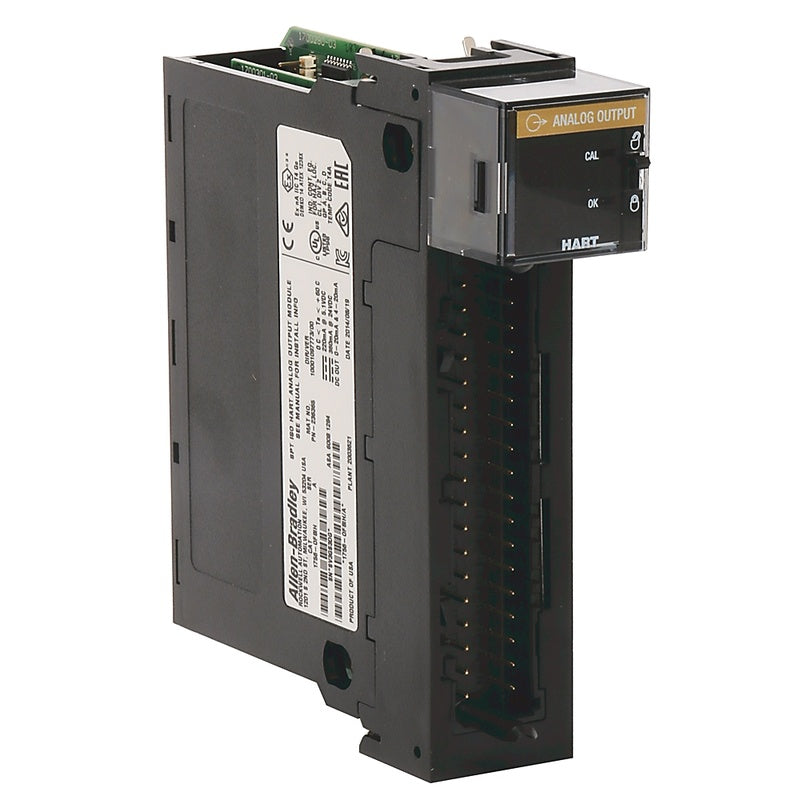

Allen-Bradley 1756-OF8IH - ControlLogix 8 Pt A/O HART Isolated

ControlLogix 8 Pt A/O HART Isolated

Isolated Analog Output Module - 8-Channel HART

Specifications

• Display: Module Health, In Calibration,Mode
• Isolation: 250V (continuous), Reinforced,insulation type, outputs to,backplane. Basic insulation,type, output to output, and,outputs to ground.
• Number Of Channels: 8
• Output Signal: 4-20mA
• Special Features: Supports HART Protocol
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Calibrated accuracy: 0.15% @ 4...20mA, 25 ¡ãC (77 ¡ãF)
• Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Current draw: 400 mA (estimated) @ 24V @ 24V
• Data format: IEEE 32-bit floating point
• Drive capability: 50...750 ? with short circuit survival
• EFT/B immunity: ¡À2kV @ 5kHz on signal ports
• Emissions: IEC 61000-6-4
• Enclosure type rating: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Gain drift with temperature: ¡À4 ppm of full scale range/¡ãC
• Input, current: true
• Input, resistance thermometer: false
• Input, resistor: false
• Input signal, configurable: true
• Input, thermocouple: false
• Input, voltage: true
• Isolation voltage: 250V (continuous), Reinforced insulation type, outputs to backplane, Basic insulation type, output to output, and outputs to ground.
• Load reactance: 10 ¦ÌH maximum
• Module error: 0.3% @ 4...20mA
• Module keying: Electronic, software configurable
• Module scan time: Estimate 1 s if all channels are HART enabled, Pass through messages, handheld communications, sary masters, communication errors, or configuration changes can significantly increase the update time.
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4A
• Offset drift: ¡À3 ppm of full scale range/¡ãC (72 nA/¡ãC typical)
• Open circuit detection: Current output only (output must be set >=0.1 mA)
• Operating temperature: 0 ¡ãC
• Output conversion method: R-Ladder DAC
• Output, current: false
• Output range: 0...20mA @ 4...20mA
• Outputs: 8 current
• Output short circuit protection: Current electronically limited to <=21 mA with no damage
• Output signal configurable: false
• Output, voltage: false
• Overvoltage protection: ¡À24V DC
• Power dissipation: 6.5 W nominal (maximum), (<6.4 W with 50 ? load on all channels), (<6.5 W with 250 ? load on all channels), (<6.7 W with 750 ? load on all channels)
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Relative humidity: 5...95% noncondensing
• Resolution: 15 bit across 24 mA, 732 nA per bit
• RTB keying: User-defined mechanical
• Settling time: HART not enabled: <23 ms to 95% with resistive loads, HART enabled: <100 ms to 95% with resistive loads
• Shock: Operating: 30 G, Non operating: 50 G
• Slot width: 1
• Suitable for safety functions: false
• Surge transient immunity: ¡À2kV line-earth (CM) on shielded ports
• Surrounding air temperature, max: 60 ¡ãC
• Terminal block torque specifications: 1756-TBCH: 0.5 Nm (4.4 in-lb)
• Type of electric connection: Screw-/spring clA connection
• Vibration: 2 G @ 10...500 Hz
• Voltage and current ratings: Backplane: 220mA @ 5.1V DC, 360mA @ 24V DC, Output voltage range: 5...30V DC, Output current range: 0...20mA @ 4...20mA
• Wire category: 2 - on signal ports
• Wire size: Single wire connection (1756-TBCH): 0.33...2.1 mm2 (22...14 AWG) solid or stranded shielded copper wire, rated at 105 ¡ãC (221 ¡ãF) or greater, 1.2 mm (3/64 in.) insulation maximum, Single wire connection (1756-TBS6H): 0.33...2.1 mm2 (22...14 AWG) solid or
• Wire type: Copper
