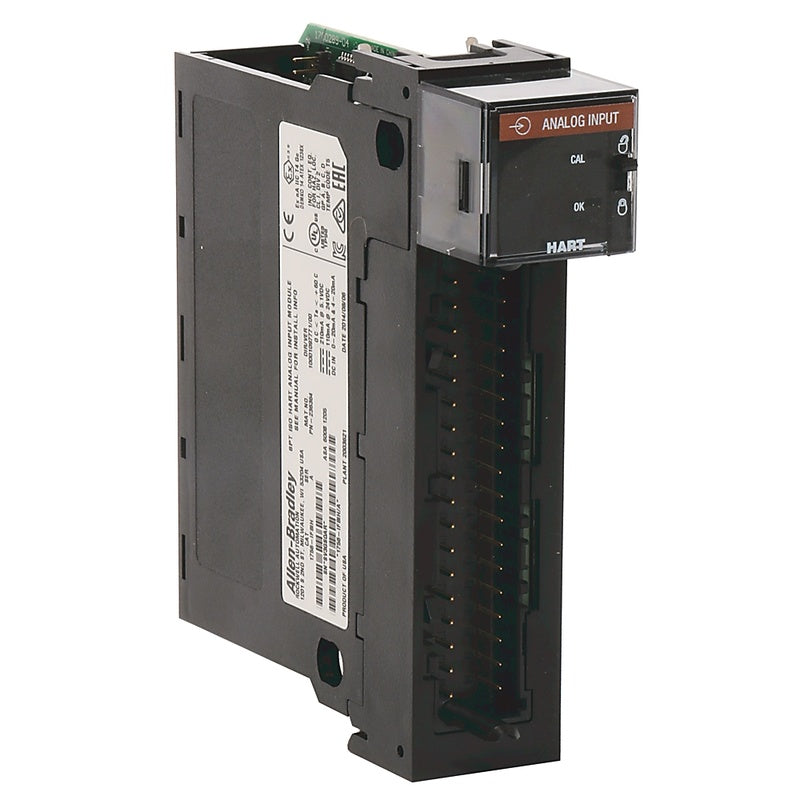

Allen-Bradley 1756-IF8IH - ControlLogix 8 Pt A/I HART Isolated

ControlLogix 8 Pt A/I HART Isolated

Isolated Analog Input Module - 8-Channel HART

Specifications

• Display: Module Health, In Calibration,Mode
• Input Signal: 0-20mA, 4-20mA
• Isolation: 250V (continuous), reinforced,insulation type, inputs to,backplane
• Number Of Channels: 8
• Special Features: Supports HART Protocol
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Calibrated accuracy: 0.15...1.5% of full scale, filter dependent@ 25 ¡ãC with HART disabled, 1.5% of full scale with 250 Hz filter @ 25 ¡ãC with HART enabled, 0.5% of full scale with 100 Hz filter @ 25 ¡ãC with HART enabled, 0.2% of full scale with 50 Hz or 60 Hz filter @ 25 ¡ãC
• Common mode noise rejection: >90 dB @ 50/60 Hz (10 Hz, 15 Hz or 20 Hz filters only)
• Conducted RF immunity: 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
• Data format: 32-bit floating point
• EFT/B immunity: ¡À2kV @ 5kHz on signal ports
• Emissions: IEC 61000-6-4
• Enclosure type rating: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Gain drift with temperature: 20 ppm/¡ãC
• Input conversion method: Sigma-Delta ADC (24-bit converter)
• Input, current: true
• Input impedance: 250 ? ¡À5 ?
• Input offset drift with temperature: <=300 ¦ÌA/¡ãC
• Input overvoltage protection: 28.8V DC
• Input range: 0...20 mA (0...20.58 mA), 4...20 mA (3.42...20.58 mA)
• Input, resistance thermometer: false
• Input, resistor: false
• Inputs: Eight current inputs
• Input signal, configurable: true
• Input, thermocouple: false
• Input, voltage: true
• Inrush current: 400mA @ 5V, 450mA @ 24V
• Isolation voltage: 250V (continuous), Reinforced insulation type, inputs to backplane, Basic insulation type, input to input, and inputs to ground.
• Module error over full temperature range: 0.3% of range (all filters) with HART disabled
• Module keying: Electronic, software configurable
• Module scan time: 18...488 ms (filter dependent) for all channels - analog, minimum
• Nonoperating temperature: -40 ¡ãC
• Normal mode noise rejection: >90 dB @ 50 Hz and 60 Hz with 10 Hz filter, >74 dB @ 50 Hz and 60 Hz with 15 Hz filter, >33 dB @ 50 Hz and >90 dB @ 60 Hz with 20 Hz filter
• North American temperature code: T5
• Open circuit detection time: 5 s (4...20 mA range only)
• Operating temperature: 0 ¡ãC
• Output, current: false
• Output signal configurable: false
• Output, voltage: false
• Power dissipation within module: 4 W
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Relative humidity: 5...95% noncondensing
• Resolution: 16 to 21 bit
• RTB keying: User-defined mechanical
• Shock: Operating: 30 G, Non operating: 50 G
• Slot width: 1
• Suitable for safety functions: false
• Surge transient immunity: ¡À2 kV line-earth (CM) on shielded signal ports
• Surrounding air temperature, max: 60 ¡ãC
• Terminal block torque specifications: 1756-TBCH: 0.5 Nm (4.4 in-lb)
• Type of electric connection: Screw-/spring clA connection
• Typical module HART dynamic variables update time for all channels: 1 s typical if all channels are HART enabled Pass through messages, handheld communications, sary masters, communication errors, or configuration changes can significantly increase the update time.
• Vibration: 2 G @ 10...500 Hz
• Voltage and current ratings: Backplane: 210mA @ 5.1V DC, 110mA @ 24V DC, Input voltage range: 5...30V DC, Input current range: 0...20mA @ 4...20mA
• Wire category: 2 - on signal ports
• Wire size: Single wire connection (1756-TBCH): 0.33...2.1 mm2 (22...14 AWG) solid or stranded shielded copper wire, rated at 105 ¡ãC (221 ¡ãF) or greater, 1.2 mm (3/64 in.) insulation maximum, Single wire connection (1756-TBS6H): 0.33...2.1 mm2 (22...14 AWG) solid or
• Wire type: Copper
