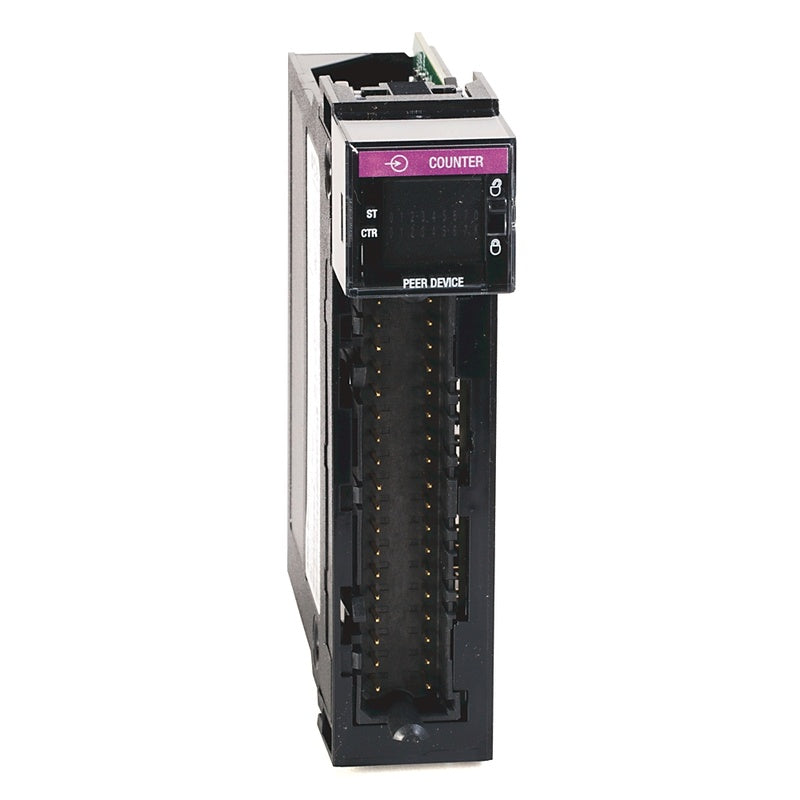

ControlLogix 8 Point Counter Input
10-30 VDC Counters at 40 KHz, 8 Counters / 8 Isolated Inputs, Peer to Peer Input (36 Pin)
Specifications
-
Change of state: Any transition
-
Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
-
Counting frequency, max: 40 khz
-
Count range: 0...2,147,483,648 (31-bit counter)
-
Current draw: 275mA @ 5.1V, 3mA @ 24V
-
Cyclic update time: 0.2 ms
-
Digital inputs configurable: true
-
Digital outputs configurable: false
-
EFT/B immunity: ¡À4kV @ 5kHz on signal ports
-
Emissions: IEC 61000-6-4
-
Enclosure type: None (open-style)
-
ESD immunity: 6 kV contact discharges, 8 kV air discharges
-
Input delay time: OFF to ON: 14 ¦Ìs nom/23 ¦Ìs max + user-configurable filter time of 0...30,000 ¦Ìs, ON to OFF: 14 ¦Ìs nom/23 ¦Ìs max + user-configurable filter time of 0...30,000 ¦Ìs
-
Input impedance, max: 6 k? @ 30V DC
-
Inputs: 8 individually isolated, standard input or counter-control functionality
-
Input voltage, nom: 24V DC
-
Isolation voltage: 250V (continuous), reinforced insulation type, inputs to backplane, 250V (continuous), basic insulation type, input to input
-
Module keying: Electronic, software configurable
-
Nonoperating temperature: -40 ¡ãC
-
North American temperature code: T4A
-
Number of counters: 8 individually isolated
-
Off-state current, max: 1.5 mA
-
Off-state voltage, max: 5V
-
ON-state current, max: 5mA @ 30V DC
-
On-state current, min: 2mA @ 10V DC
-
Operating temperature: 0 to 60 ¡ãC
-
Operating voltage: 10...30V DC
-
Power dissipation: 3.8 W @ 60 ¡ãC (140 ¡ãF)
-
Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
-
Redundancy: false
-
Relative humidity: 5...95% noncondensing
-
Reverse polarity protection: Reverse polarity protection: Yes
-
RTB keying: User-defined mechanical
-
Shock: Operating: 30 G, Non operating: 50 G
-
Short-circuit protection, outputs available: false
-
Slot width: 1
-
Suitable for safety functions: false
-
Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on signal ports
-
Surrounding air temperature, max: 60 ¡ãC
-
Thermal dissipation: 12.97 btu/h
-
Total backplane power: 1.47 W
-
Type of electric connection: Screw connection
-
Vibration: 2 G @ 10...500 Hz
-
Voltage category: 12/24V DC sink/source
-
Voltage type of supply voltage: DC
-
Wire category: 1 - on signal ports
-
Product Series: A
