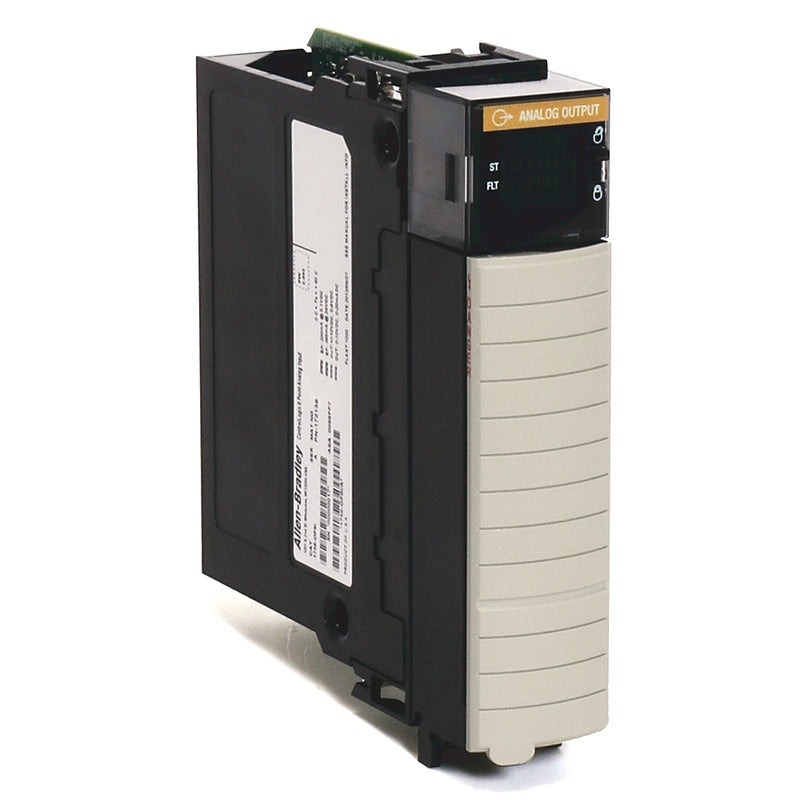

ControlLogix 8 Point Analog Output
Analog Output Module, 8 Isolated Points, Current and Voltage (36 Pin)
Specifications
-
Display: Module Health, In Calibration,Mode, Input, Fault and,Communication Status
-
Isolation: 250V (continuous), reinforced,insulation type, outputs to,backplane. 250V (continuous),basic insulation type, output,to output
-
Special Features: Per Point Isolation
-
Analogue inputs configurable: true
-
Analogue outputs configurable: false
-
Calibrated accuracy: 0.05% @ 25¡ãC (77 ¡ãF)
-
Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
-
Current draw: 200mA @ 5.1V, Voltage or current mode with 250 ? loads = 220mA @ 24V, Current mode with 500 ? loads = 275mA @ 24V, Current mode with 750 ? loads = 340mA @ 24V, Current mode with 1000 ? loads = 385mA @ 24V
-
Data format: IEEE 32-bit floating point
-
Drive capability: Current output = 0...1000 ?, Voltage output =>1000 ?
-
EFT/B immunity: ¡À4kV @ 5kHz on signal ports
-
Emissions: IEC 61000-6-4
-
Enclosure type rating: None (open-style)
-
ESD immunity: 6 kV contact discharges, 8 kV air discharges
-
Input, current: true
-
Input, resistance thermometer: false
-
Input, resistor: false
-
Inputs: Eight isolated channels - any combination of voltage or current mode
-
Input signal, configurable: true
-
Input, thermocouple: false
-
Input, voltage: true
-
Isolation voltage: 250V (continuous), reinforced insulation type, outputs to backplane, 250V (continuous), basic insulation type, output to output
-
Module conversion method: R-Ladder DAC, monotonicity with no missing codes
-
Module error over full temperature range: 0.1 %
-
Module keying: Electronic, software configurable
-
Module scan time: 1 ms minimum
-
Nonoperating temperature: -40 ¡ãC
-
North American temperature code: T4
-
Open circuit detection: Current output = Yes
-
Operating temperature: 0 to 60 ¡ãC
-
Output, current: false
-
Output impedance: 46 ? (Current output)
-
Output range: -10¡10V, 0¡10V, 0¡5V, 0¡20 Ma
-
Output signal configurable: false
-
Output, voltage: false
-
Overvoltage protection: ¡À30V DC (voltage/current)
-
Power dissipation: Voltage mode: 5.4 W (18.4 BTU/hr), Current mode with 250 ? loads: 5.4 W (18.4 BTU/hr), Current mode with 500 ? loads: 5.8 W (19.8 BTU/hr), Current mode with 750 ? loads: 6.5 W (22.2 BTU/hr), Current mode with 1000 ? loads: 6.7 W (22.9 BTU/hr)
-
Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
-
Relative humidity: 5...95% noncondensing
-
Resolution: 16 bit, ¡À10.5V (0.32 mV/count), 0...10.5V (0.16 mV/count), 0...5.25V (0.08 mV/count), 0...21 mA (0.32 ¦ÌA/count)
-
RTB keying: User-defined mechanical
-
Settling time: <2 ms to 95% of final value with resistive loads
-
Shock: Operating: 30 G, Non operating: 50 G
-
Short circuit detection: Voltage output = Yes
-
Slot width: 1
-
Suitable for safety functions: false
-
Surge transient immunity: ¡À2 kV line-earth (CM) on shielded signal ports
-
Surrounding air temperature, max: 60 ¡ãC
-
Thermal dissipation: Voltage mode = 18.4 BTU/hr, Current mode with 250 ? loads = 18.4 BTU/hr, Current mode with 500 ? loads = 19.8 BTU/hr, Current mode with 750 ? loads = 22.2 BTU/hr, Current mode with 1000 ? loads = 22.9 BTU/hr
-
Total backplane power: Voltage mode = 6.3 W, Current mode with 250 ? loads = 6.3 W, Current mode with 500 ? loads = 7.6 W, Current mode with 750 ? loads = 9.2 W, Current mode with 1000 ? loads = 10.2 W
-
Type of electric connection: Screw-/spring clA connection
-
Vibration: 2 G @ 10...500 Hz
-
Wire category: 2 - on signal ports
-
Wire size: 0.33...2.1 mm2 (22...14 AWG) solid or stranded shielded copper wire, rated at 90 ¡ãC (194 ¡ãF) or greater, 1.2 mm (3/64 in.) insulation maximum
-
Product Series: B
