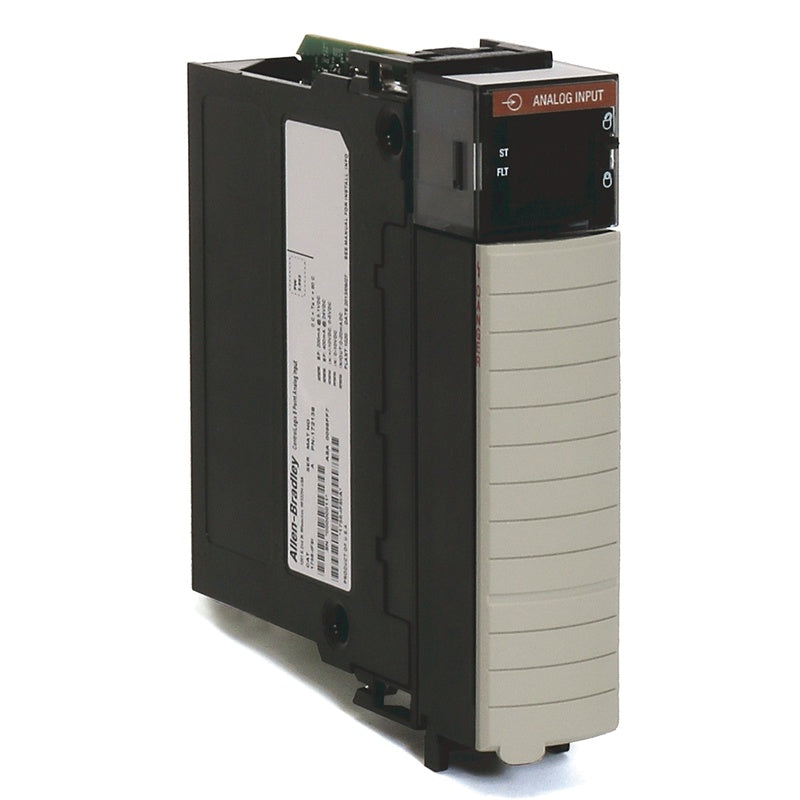

ControlLogix 8 Point Analog Input
Analog Input Module, 8 Isolated Points, Current, Current Sourcing and Voltage (36 Pin)
Specifications
-
Display: Module Health, In Calibration,Mode, Input, Fault and,Communication Status
-
Input Signal: -10G?a10V, 0G?a10V, 0G?a5V, 0G
-
Isolation: 250V (continuous), reinforced,insulation type, inputs to,backplane. 250V (continuous),basic insulation type, input,to input
-
Special Features: Per Point Isolation
-
Analogue inputs configurable: true
-
Analogue outputs configurable: false
-
Calibrated accuracy: 0.05% @ 25¡ãC (77 ¡ãF)
-
Channel bandwidth: Notch Filter configuration dependent
-
Common mode noise rejection: 120 dB @ 50/60 Hz
-
Conducted RF immunity: 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
-
Current draw: 200mA @ 5.1V, Voltage/Non-sourcing current mode: 150mA @ 24V, Sourcing current mode: 400mA @ 24V (In sourcing current mode, the channel provides loop power.)
-
Data format: IEEE 32-bit floating point
-
EFT/B immunity: ¡À4kV @ 5kHz on shielded signal ports
-
Emissions: IEC 61000-6-4
-
Enclosure type rating: None (open-style)
-
ESD immunity: 6 kV contact discharges, 8 kV air discharges
-
Input, current: true
-
Input impedance: Voltage mode: 1 G? approximately (powered), Voltage mode: 7500 ? approximately (unpowered), Current mode: 125 ? approximately
-
Input range: -10...10V, 0¡10V @ 0...5V, 0...20 mA
-
Input, resistance thermometer: false
-
Input, resistor: false
-
Inputs: Eight isolated channels - any combination of voltage or current mode
-
Input signal, configurable: true
-
Input, thermocouple: false
-
Input, voltage: true
-
Isolation voltage: 250V (continuous), reinforced insulation type, inputs to backplane, 250V (continuous), basic insulation type, input to input
-
Module conversion method: Sigma-Delta
-
Module error over full temperature range: 0.1 %
-
Module input scan time, min: 1 ms
-
Module keying: Electronic, software configurable
-
Nonoperating temperature: -40 ¡ãC
-
Normal mode noise rejection: 80 dB @ 60 Hz
-
North American temperature code: T4
-
Onboard data alarming: true
-
Open circuit detection time: 5 s
-
Operating temperature: 0 to 60 ¡ãC
-
Output, current: false
-
Output signal configurable: false
-
Output, voltage: false
-
Overvoltage protection: ¡À30V DC maximum
-
Power dissipation: Voltage mode: 4.6 W (15.7 BTU/hr), Non-sourcing current mode: 5.1 W (17.4 BTU/hr), Sourcing current mode: 7.3 W (24.9 BTU/hr)
-
Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
-
Real-time channel sampling: true
-
Relative humidity: 5...95% noncondensing
-
Resolution: 24 bit, ¡À10.5V (1.49 ¦ÌV/count), 0...10.5V (1.49 ¦ÌV/count), 0...5.25V (1.49 ¦ÌV/count), 0...21 mA (2.99 nA/count)
-
RTB keying: User-defined mechanical
-
Scaling to engineering units: true
-
Settling time: Notch Filter configuration dependent
-
Shock: Operating: 30 G, Non operating: 50 G
-
Slot width: 1
-
Sourcing current, max: Current limited <45 mA (IN_x/I/SRC to RTN_x)
-
Sourcing voltage, max: 36V DC (open circuit)
-
Sourcing voltage, min: 20V DC
-
Suitable for safety functions: false
-
Surge transient immunity: ¡À2 kV line-earth (CM) on shielded signal ports
-
Surrounding air temperature, max: 60 ¡ãC
-
Thermal dissipation: Voltage mode: 15.7 BTU/hr, Non-sourcing current mode: 17.4 BTU/hr, Sourcing current mode: 24.9 BTU/hr
-
Total backplane power: Voltage/Non-sourcing current mode: 4.6 W, Sourcing current mode: 10.6 W
-
Type of electric connection: Screw-/spring clA connection
-
Vibration: 2 G @ 10...500 Hz
-
Voltage and current ratings: Backplane: 5.1V DC 200mA @ 24V DC 400 mA, Input voltage: -10V to +10V @ 0V to 10V @ 0V to 5V, Input current: 0 mA to 20 mA, Output current: 0 mA to 20 mA
-
Wire category: 2 - on signal ports
-
Wire size: 0.33...2.1 mm2 (22...14 AWG) solid or stranded shielded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation maximum
-
Product Series: B
