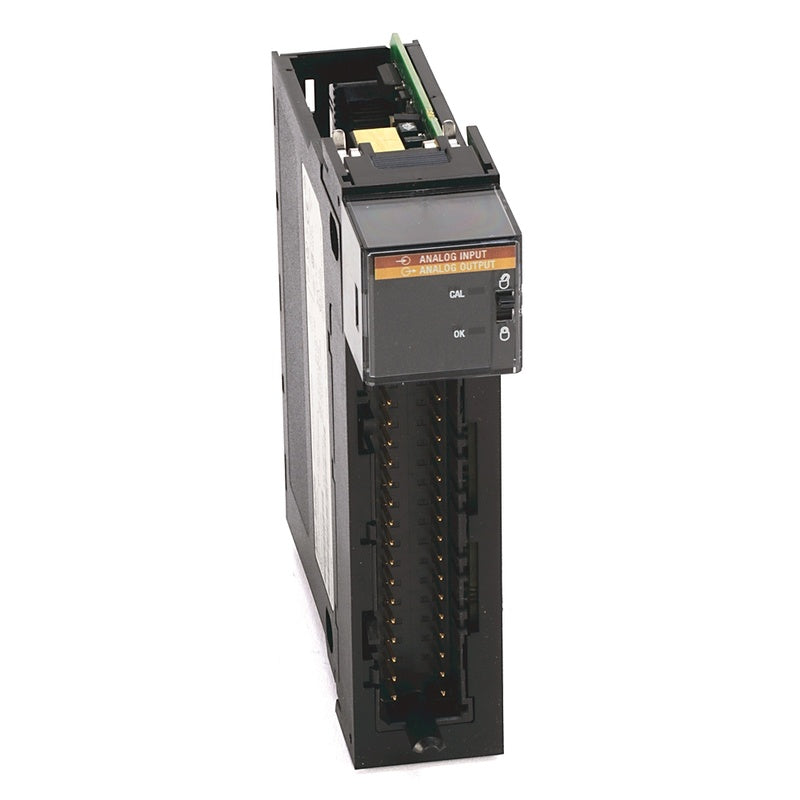

Allen-Bradley 1756-IF4FXOF2F - ControlLogix 4 Point Analog Comb Module

ControlLogix 4 Point Analog Comb Module

Fast Analog 4 Cur-Volt In/2 Cur-Volt Out 36 Pin)

Specifications

• Display: Module Health, In Calibration,Mode
• Input Signal: +/- 10V, 0-10.5V, 0-5.25V.,0-21mA
• Isolation: None between channels (Single,Ended)
• Output Signal: +/- 10.4V, 0-21mA
• Special Features: Sub-ms channel scans,Synchronized sAling across,multiple modules
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Calibrated accuracy: Input: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 ¡ãC (77 ¡ãF), Output: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 ¡ãC (77 ¡ãF)
• Conducted RF immunity: 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
• Current draw: 375mA @ 5.1V, 100mA @ 24V
• Data format: Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
• Drive capability: Voltage: >2000 ?, Current: 0...750 ?
• EFT/B immunity: ¡À2kV @ 5kHz on shielded signal ports
• Emissions: IEC 61000-6-4
• Enclosure type rating: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Gain drift with temperature: Voltage: 25 ppm/¡ãC maximum, input, Current: 35 ppm/¡ãC maximum, input, Voltage: 25 ppm/¡ãC maximum, output, Current: 50 ppm/¡ãC maximum, output
• Input conversion method: Successive approximation
• Input, current: true
• Input impedance: Voltage: >1 M?, Current: 249 ?
• Input range: ¡À10V @ 0...10V, 0...5V @ 0...20mA
• Input, resistance thermometer: false
• Input, resistor: false
• Input signal, configurable: true
• Input, thermocouple: false
• Input, voltage: true
• Isolation voltage: 250V (continuous), Reinforced insulation type, inputs and outputs to backplane, No isolation between individual inputs or outputs
• Module error: Input: 0.2% of range, Voltage: 0.2% of range, output, Current: 0.3% of range, output
• Module keying: Electronic, software configurable
• Module scan time: 300 ¦Ìs minimum
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4A
• Number, input: 4 high-speed, subms, differential
• Number, output: 2 high-speed voltage or current
• Offset drift: 50 ¦ÌV/¡ãC, 1 ¦ÌV/¡ãC
• Open circuit detection time: Input: Positive full-scale reading within 1 s, Output: Current output only (output must be set to >0.1 mA)
• Operating temperature: 0 ¡ãC
• Output conversion method: R-Ladder DAC, monotonicity with no missing codes
• Output, current: false
• Output range: ¡À10V, 0¡­20 mA
• Output settling time: <2 ms to 95% of final value with resistive loads
• Output signal configurable: false
• Output, voltage: false
• Overvoltage protection: Voltage: 30V DC, input, Current: 8V AC/DC, input, Output: 24V DC
• Power consumption: 4.3 W
• Power dissipation: Voltage: 4.3 W, Current: 4.7 W
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2700...6
• Relative humidity: 5...95% noncondensing
• Repeatability: ¡À1 least significant bit (LSB)
• Resolution: Input: Approx 14 bit across ¡À10.5V DC (21V total), ¡À10.5V range: 1.3 mV/bit, 14 bit effective, 0...10.5V range: 1.3 mV/bit, 13 bit effective, 0...5.25V range: 1.3 mV/bit, 12 bit effective, Approx 12 bit across 21mA @ 0...21mA range: 5.25 ¦ÌA/bit, Output
• RTB keying: User-defined mechanical
• Shock: Operating: 30 G, Non operating: 50 G
• Short circuit protection: Electronically current limited to 21 mA or less
• Slot width: 1
• Suitable for safety functions: false
• Surge transient immunity: ¡À2 kV line-earth (CM) on shielded signal ports
• Surrounding air temperature, max: 60 ¡ãC
• Terminal block torque specifications: 1756-TBCH: 0.5 Nm (4.4 in-lb)
• Thermal dissipation: Voltage: 14.66 BTU/hr, Current: 16.02 BTU/hr
• Type of electric connection: Screw-/spring clA connection
• Update period for all channels (RPI), min: 1 ms
• Vibration: 2 G @ 10...500 Hz
• Voltage and current ratings: Backplane: 375mA @ 5.1V DC, 100mA @ 24V DC, Analog inputs: -10...+10V @ 4...20mA, Analog outputs: -10...+10V @ 4...20mA
• Wire category: 2 - on signal ports
• Wire size: Single wire connection (1756-TBCH): 0.33...2.1 mm2 (22...14 AWG) solid or stranded shielded copper wire, rated at 105 ¡ãC (221 ¡ãF) or greater, 1.2 mm (3/64 in.) insulation maximum, Single wire connection (1756-TBS6H): 0.33...2.1 mm2 (22...14 AWG) solid or
• Product Series: B
