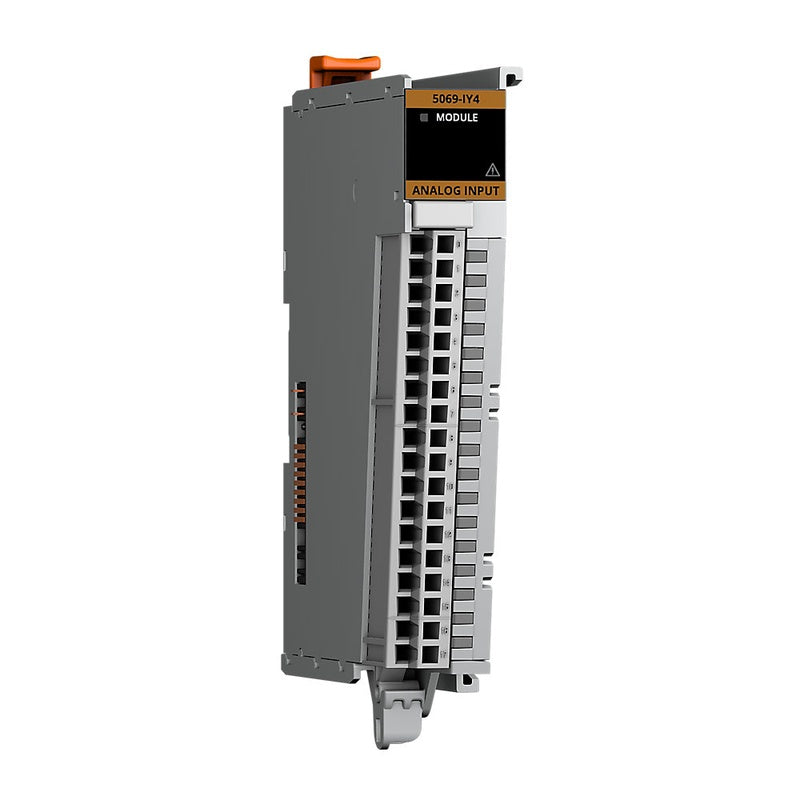

Allen-Bradley 5069-IY4 - Compact 5000 UniversalAnalog InputModule

Compact 5000 UniversalAnalog InputModule

5069 Compact I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module

Specifications

• Number Of Channels: 4 Channel
• Output Signal: Analog
• Accuracy drift with temperature: Voltage: 0.200% full scale, Current: 0.300% full scale, RTD: 0.200% full scale, Thermocouple/mvolt: 0.200% full scale
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Calibrated accuracy: Voltage: 0.100% full scale @ 25 ¡ãC Current: 0.100% full scale @ 25 ¡ãC RTD: 0.100% full scale @ 25 ¡ãC Thermocouple/mvolt: 0.100% full scale @ 25 ¡ãC
• Calibration methods: Factory calibrated, User-performed (optional)
• CJC inputs: Two CJC sensors, 2 thermistors embedded in 5069-RTB14CJC-(screw or spring) RTB, -or- 2 thermistors wired to 5069-RTB18-(screw or spring) RTB, Thermistor type: Measurement specialties, Inc. 10K3A1A, (for thermocouple mode use only)
• Common mode noise rejection ratio: 130 dB @ 50/60 Hz
• Common mode voltage: ¡À10V (Current mode and 3-wire RTD mode), ¡À2V (Voltage mode)
• Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Data format: IEEE 32-bit floating point
• Data value during overload condition: Full scale, overrange flag, Data uncertain / data bad
• Depth: 105.42 mm
• DIN rail: Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
• EFT/B immunity: ¡À4kV @ 5kHz on power ports, ¡À3kV @ 5kHz on shielded input ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• HART handheld compliance: Add an external 250 ? resistor into the current loop for HART transmitter compliance
• Height: 144.57 mm
• Indicators: 1 green/red module status indicator, 4 yellow/red I/O status indicators, 2 yellow/red CJC status indicators
• Input anti-aliasing filter cutoff frequency, typical: 500 Hz
• Input, current: true
• Input digital filter: First order lag, 0 ms¡­32,767 ms (32.767 s)
• Input impedance: Voltage: >1 M?, Current: 90 ? typical, 70¡­110 ? range, RTD: >1 M?, Thermocouple/mvolt: >1 M?
• Input notch filter (Hz) selections: 5, 10 (50/60 default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500
• Input range, current: 0...20mA @ 4....20mA
• Input range, resistive: 1...500 ?, 2...1000 ?, 4...2000 ?, 8...4000 ?
• Input range, thermocouple / millivolt: ¡À100 mV
• Input range, voltage: ¡À10V @ 0...10V, 0...5V
• Input, resistance thermometer: true
• Input, resistor: true
• Inputs: 4 differential
• Input, thermocouple: true
• Input Total Unadjusted Error (TUE): Voltage: 0.300% full Scale, Current: 0.400% full Scale, RTD: 0.300% full Scale, Thermocouple/mvolt: 0.300% full Scale
• Input type, RTD: 100, 200, 500, 1000 ? platinum, alpha=385, 100, 200, 500, 1000 ? platinum, alpha=3916, 120 ? nickel, alpha=672, 100, 120, 200, 500 ? nickel, alpha=618, 10 ? copper 427
• Input type, thermocouple: B, C, D, E, J, K, L (TXK/XK), N, R, S, T
• Input, voltage: true
• Insulation stripping length: 5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.)
• Isolation voltage: 250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports
• Local CJC sensor accuracy: ¡À0.3 ¡ãC
• MOD power: 75mA @ 18...32V DC
• MOD power passthrough, max: 9.55A @ 18...32V DC
• Module conversion method: Sigma-Delta, One 24-bit multiplexed ADC
• Module keying: Electronic keying via progming software
• Nonoperating temperature: -40 ¡ãC
• Normal mode noise rejection ratio: 65 dB @ 50/60 Hz, notch filter dependent
• North American temperature code: T4
• Notch filter at minimum RPI: 62.5 kHz (0.2 ms, 1 channel enabled)
• Notch filter frequency at RPI of 2.5 ms, min: 10 khz
• Number of analogue inputs: 4
• Onboard data alarming: true
• Open circuit detection time, nom: Voltage: + full scale, <2 s, Current: 4...20 mA range, <2 s, RTD: <2 s, Thermocouple / mvolt: + full scale, <10 s
• Operating temperature: 0 ¡ãC
• Output, current: false
• Output, voltage: false
• Overcurrent protection, max: Current mode: ¡À30 mA
• Overvoltage protection, max: Voltage, current, RTD, and thermocouple/mV modes: ¡À30V DC
• Power dissipation, max: Voltage mode: 1.8 W, Current mode: 2.1 W, RTD mode: 2.1 W, Thermocouple / mvolt mode: 1.8 W
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Real-time channel sampling: true
• Relative humidity: 5...95% noncondensing
• Remote CJC sensor accuracy: Based on specified thermistor: ¡À0.3 ¡ãC
• Resolution, current: 16 bit at 10 Hz notch filter: 0...21 mA: <0.32 ¦ÌA/count (16 bit), 3.6...21 mA: <0.27 ¦ÌA/count (16 bit)
• Resolution, RTD: (16 bit at 10 Hz notch filter) 3 wire mode: <7.9 m?/cnt in 1...500 ? mode, <15.8 m?/cnt in 2...1000 ? mode, <31.7 m?/cnt in 4...2000 ? mode, <63.4 m?/cnt in 8...4000 ? mode
• Resolution, thermocouple / millivolt: 16 bit at 10 Hz notch filter: <3.1 ¦ÌV/cnt in ¡À100 mV mode
• Resolution, voltage: 16 bit at 10 Hz notch filter: ¡À10.5V: <320 ¦ÌV/count (15 bit plus sign bipolar), 0...10.5V: <160 ¦ÌV/count (16 bit unipolar), 0...5.25V: <80 ¦Ì/V count (16 bit unipolar)
• RTB keying: None
• RTB torque: 5069-RTB18-SCREW, 5069-RTB14CJC-SCREW: 0.4 Nm (3.5 lbin)
• RTD excitation current: 600 ¦ÌA, 3 wire mode, 100 ¦ÌA, 2 wire mode
• RTD sensor types/temperature range: 100, 200, 500, 1000 ? PT 385: -200...870 ¡ãC, -328...1598 ¡ãF, 73...1143 ¡ãK, 132...2058 ¡ãR, 100, 200, 500, 1000 ? PT 3916: -200...630 ¡ãC, -328...1166 ¡ãF, 73...903 ¡ãK, 132...1626 ¡ãR, 10 ? CU 247: -200...260 ¡ãC, -328...500 ¡ãF, 73...533 ¡ãK, 132...960 ¡ãR,
• SA power: 100mA @ 18...32V DC
• SA power passthrough, max: 9.95A @ 18...32V DC
• Scaling to engineering units: true
• Scan time: Per channel: 625 ¦Ìs, Per group: 2.5 ms
• Shock: Operating: 30 G, Non operating: 50 G
• Slot width: 1
• Step response time to 63% of value: 7.5 ms (Notch filter 10 kHz)
• Suitable for safety functions: false
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on power ports, ¡À2 kV line-earth (CM) on shielded input ports
• Surrounding air temperature, max: 60 ¡ãC
• Thermal dissipation, max: Voltage mode: 6.1 BTU/hr, Current mode: 7.2 BTU/hr, RTD mode: 7.2 BTU/hr, Thermocouple/mvolt: 6.1 BTU/hr
• Thermocouple linearization: ITS-90
• Thermocouple type/temperature range: Thermocouple Type B: 21¡­1820 ¡ãC, 68¡­3308 ¡ãF, 293¡­2093 ¡ãK, 528¡­3768 ¡ãR, Thermocouple Type C: 0¡­2320 ¡ãC, 32¡­4208 ¡ãF, 273¡­2593 ¡ãK, 492¡­4668 ¡ãR, Thermocouple Type D: 0¡­2320 ¡ãC, 32¡­4208 ¡ãF, 273¡­2593 ¡ãK, 492¡­4668 ¡ãR, Thermocouple Type E: -270¡­1000 ¡ãC, -454¡­18
• Type of electric connection: Screw-/spring clA connection
• Vibration: 5 G @ 10...500 Hz
• Voltage variation: 10 ms interruption on MOD power port
• Weight: 175 g
• Width: 22 mm
• Wire category: 2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port
• Wire impedance: 25 ? maximum for specified accuracy (3-wire RTD mode only)
• Wire size: 5069-RTB18-SPRING and 5069-RTB14CJCSPRING connections: 0.5...1.5 mm2 (22...16 AWG) solid or stranded shielded copper wire rated at 105 ¡ãC (221 ¡ãF), or greater, 2.9 mm (0.11 in.), max diam including insulation, single wire connection only, 5069-RTB18-S
