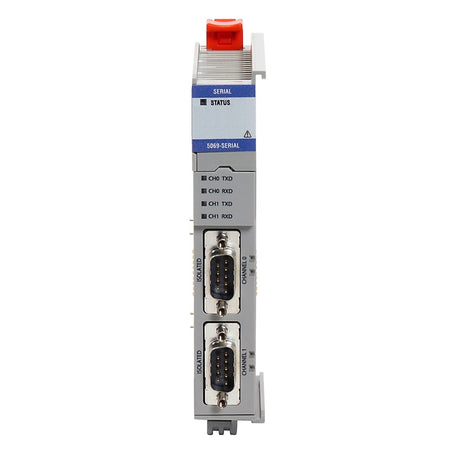

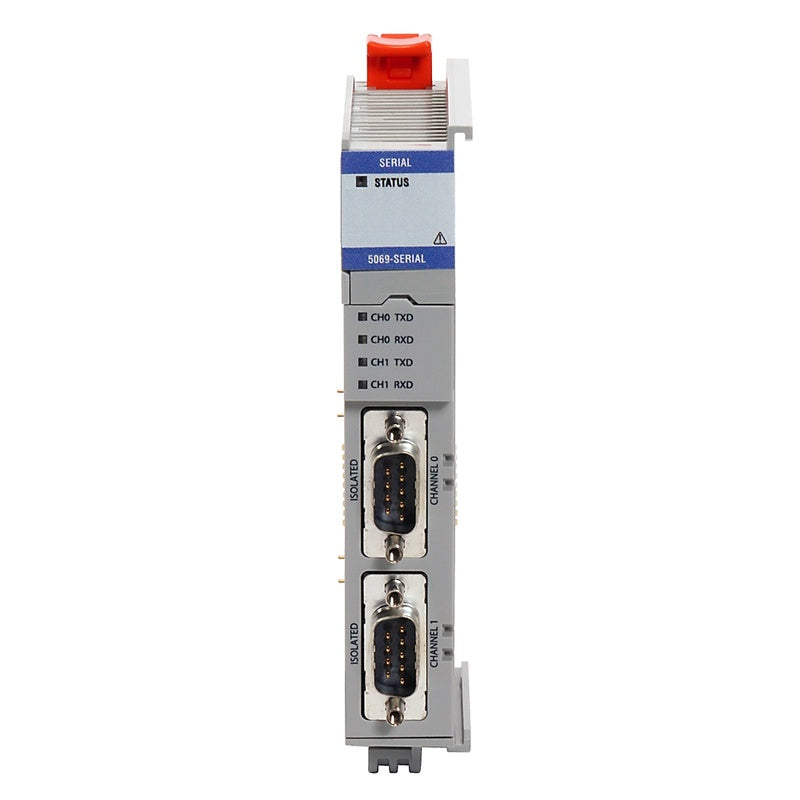

Allen-Bradley 5069-SERIAL - Compact 5000 Serial Interface Module

SKU: 5069-SERIAL
(4)
$795.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Compact 5000 Serial Interface Module

Compact 5000 Serial Interface Module

Specifications

  • Communication: RS232C & RS422 (Full Duplex), RS485 (Half Duplex)
  • Depth: 105mm, 4.15"
  • Height: 145mm, 5.69"
  • Isolation: 250V(cont)
  • Number Of Channels: 2
  • ATEX temp code: T4
  • Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • DIN rail: Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
  • EFT/B immunity: ¡À4kV @ 5kHz on power ports, ¡À3kV @ 5kHz on shielded output ports
  • Emissions: IEC 61000-6-4
  • Enclosure type: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • Handshaking: RTS/CTS hardware handshake always enabled, RTS/CTS can be controlled by the user
  • Indicators: 1 green/red module status indicator, 1 transmit data (TXD) and 1 receive data (RXD) yellow/red status indicator per channel
  • Inputs: 2 full-duplex (RS-232, RS-422), 2 half-duplex (RS-485)
  • IO link master: false
  • Isolation voltage: 250V (continuous), basic insulation type, SA and MOD power to backplane, 250V (continuous), basic insulation type, backplane to communication channels, 250V (continuous), basic insulation type, backplane to chassis ground, 250V (continuous), basic insulat
  • MOD power: 100mA @ 18...32V DC
  • MOD power passthrough, max: 9.55A @ 18...32V DC
  • Module keying: None
  • Nonoperating temperature: -40 ¡ãC
  • Operating mode: Generic ASCII, Modbus RTU, Modbus ASCII
  • Operating temperature: 0 ¡ãC
  • Power dissipation, max: 2.8 W
  • Radiated RF immunity: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • RTB keying: None
  • SA power passthrough, max: 9.95A @ 0...32V DC
  • Serial input voltage signal: 3...25V DC regarding signal ground (SG) 0, asserted, ON, space, active, -3...-25V DC regarding signal ground (SG) 1, disasserted, OFF, mark, inactive
  • Serial port connectors: Two DB-9 male with pin
  • Shock: Operating: 30 G, Non operating: 50 G
  • Slot width: 1
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: true
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on power ports, ¡À2 kV line-earth (CM) on shielded output ports
  • Surrounding air temperature, max: 60 ¡ãC
  • Thermal dissipation, max: 9.6 btu/h
  • Transmit transaction ID: 0...255
  • Type of data transmission: Module rack extension
  • Vibration: 5 G @ 10...500 Hz
  • Weight: 175 g
  • Width: 22 mm
  • Wire category: 2 - power ports, 2 - communication ports
  • With optical interface: false
  • With potential separation: false
