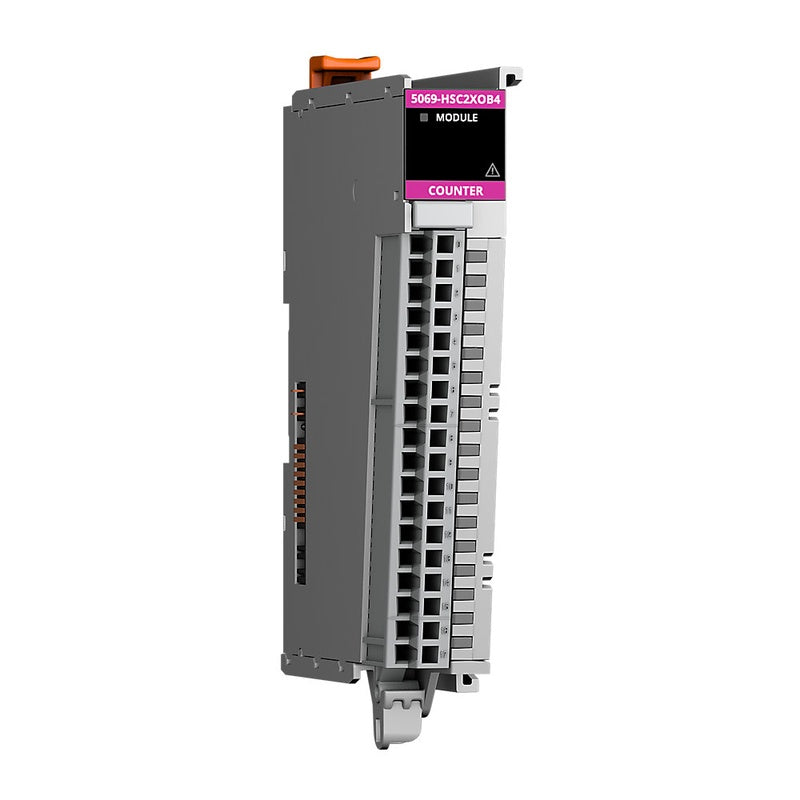

Allen-Bradley 5069-HSC2XOB4 - Compact 5000 High Speed Counter Module

Compact 5000 High Speed Counter Module

5069 Compact I/O 2 Channel High Speed Counter Module with 4 Channel 24V DC Source Outputs

Specifications

• Depth: 105mm, 4.15"
• Height: 145mm, 5.69"
• Isolation: 300V(cont)
• Number Of Channels: 6
• Analogue input, current: false
• Analogue input, resistor: false
• Analogue input, resistor temperature: false
• Analogue input signal configurable: false
• Analogue input, thermocouple: false
• Analogue input, voltage: false
• Analogue output, current: false
• Analogue output signal configurable: false
• Analogue output, voltage: false
• Conducted RF immunity: 10Vrms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Counter input ratings: 4mA @ 3...32V DC
• Digital in-/outputs, configurable: true
• DIN rail: Compatible zinc-plated chromate-passivated steel
• Duration of fault mode per point: 1 s, 2 s, 5 s, 10 s, Forever (default)
• EFT/B immunity: ¡À4kV @ 5kHz on power ports, ¡À2kV @ 5kHz on shielded output ports, ¡À2kV @ 5kHz on shielded counter ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Indicators: 1 green/red module status indicator, 10 yellow/red I/O status indicator
• Input current, max: 8 mA
• Inputs: 2 quadrature (ABZ) differential inputs
• Insulation stripping length: 5069-RTB18-SPRING connections: 10 mm (0.39 in.)
• Isolation voltage: 250V (continuous), basic insulation type, No isolation between SA power and I/O ports, No isolation between individual I/O ports, Type tested at 1500V AC @ 60s
• MOD power: 50mA @ 18...32V DC
• MOD Power passthrough: 9.55A @ 18...32V DC
• Module keying: Electronic keying via progming software
• No load detection diagnostics: Yes (per channel diagnostics)
• Nonoperating temperature: -40 ¡ãC
• Off-state current, max: 1 mA
• Off-state voltage, max: 1.5 V
• On-state current, min: 4 mA
• On-state output current, min: 1 mA per channel 4 mA per module
• ON-state voltage: 3...32V DC
• On-state voltage drop, max: <0.3V DC
• On-state voltage, nom: 24V DC
• Operating temperature: 0 ¡ãC
• Output control in fault state per point: Hold last state, On, Off (default)
• Outputs: 4 Channels (1 group of 4), sourcing
• Output short circuit/overload/overtemp detection: Yes (per channel diagnostics)
• Output short circuit/overload protection: true
• Output states in fault mode per point: Hold last state, On, Off (default)
• Output states in program mode per point: Hold last state, On, Off (default)
• Output voltage range: 10...32V DC
• Overvoltage protection, max: 36V (fuse protected)
• Pilot duty: Yes (make current electronically limited/protected @ 3.6 A)
• Power dissipation, max: 3 W
• Pulse separation, min: 100 ns
• Pulse width, min: 125 ns
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Relative humidity: 5...95% noncondensing
• Reverse voltage protection: 32V DC
• RTB keying: None
• RTB torque: 5069-RTB18-SCREW RTB only: 0.4 Nm (3.5 lbin)
• SA power: 3A @ 18...32V DC
• SA Power passthrough: 9.95A @ 10...32V DC
• Shock: Operating: 30 G, Non operating: 50 G
• Short-circuit protection, digital outputs available: true
• Slot width: 1
• Suitable for safety functions: false
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on power ports, ¡À2 kV line-earth (CM) on shielded output ports, ¡À2 kV line-earth (CM) on shielded counter ports
• Surrounding air temperature, max: 60 ¡ãC
• Thermal dissipation, max: 10.2 btu/h
• Time delay at signal exchange: 20 ms
• Type of digital output: Transistor
• Type of electric connection: Screw-/spring clA connection
• Type of output voltage: DC
• Type of voltage (input voltage): DC
• Vibration: 5 G @ 10...500 Hz
• Voltage category: 12/24V DC source
• Voltage type of supply voltage: DC
• Voltage variation: 10 ms interruption on MOD Power port
• Weight, approx: 175 g
• Width: 22 mm
• Wire size: 5069-RTB18-SPRING connections: 0.5...1.5 mm2 (22...16 AWG) solid or stranded shielded copper wire rated at 105 ¡ãC (221 ¡ãF), or greater, 2.9 mm (0.11 in.), maximum diam including insulation 5069-RTB18-SCREW connections: 0.5¡­1.5 mm2 (22 AWG) solid or
• Wiring category: 2 - on shielded output ports, 2 - on output power ports, 2 - on shielded counter ports
• Product Series: A
