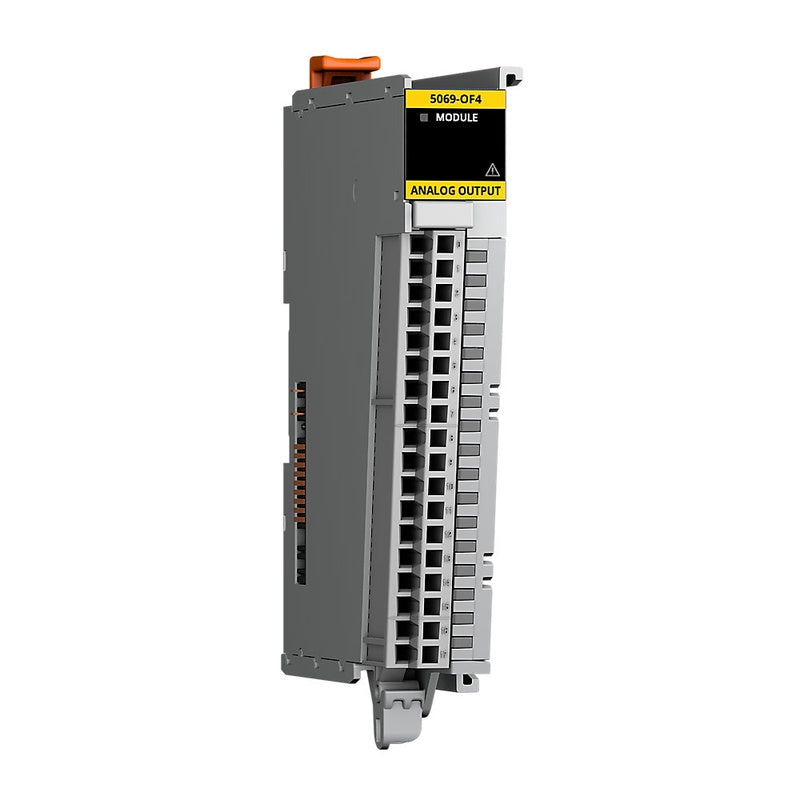

Allen-Bradley 5069-OF4 - Compact 5000 Analog Output Module

Compact 5000 Analog Output Module

5069 Compact I/O 4 Channel Voltage/Current Analog Output Module

Specifications

• Number Of Channels: 4 Channel
• Output Signal: Analog
• Accuracy drift with temperature: Voltage: 0.30% full scale, Current: 0.50% full scale
• Analog output ratings: ¡À10V DC @ 0...20mA per channel
• Analogue inputs configurable: false
• Analogue outputs configurable: true
• Calibrated accuracy: Voltage: 0.10% full scale @ 25 ¡ãC Current: 0.10% full scale @ 25 ¡ãC
• Calibration methods: Factory calibrated, User-performed (optional)
• Capacitive load, max: 1 ¦ÌF (voltage mode only)
• Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Conversion time: Per channel: 25 ¦Ìs
• Data format: IEEE 32-bit floating point
• Depth: 105.42 mm
• DIN rail: Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
• Drive capability: Voltage: 1000 ? minimum, Current: 500 ? maximum
• EFT/B immunity: ¡À4kV @ 5kHz on power ports, ¡À3kV @ 5kHz on shielded output ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Height: 144.57 mm
• Indicators: 1 green/red module status indicator, 4 yellow/red I/O status indicators
• Inductive load, max: 1 mH (current mode only)
• Input, current: false
• Input, resistance thermometer: false
• Input, resistor: false
• Input, thermocouple: false
• Input, voltage: false
• Insulation stripping length: 5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.)
• Isolation voltage: 250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports
• MOD power: 75mA @ 18...32V DC
• MOD power passthrough, max: 9.55A @ 18...32V DC
• Module conversion method: R-Ladder DAC, monotonicity with no missing codes
• Module keying: Electronic keying via progming software
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4
• Number of analogue outputs: 4
• Open circuit detection: Current mode only
• Operating temperature: 0 ¡ãC
• Output, current: true
• Output range, current: 0...20mA @ 4...20mA
• Output range, voltage: ¡À10V @ 0...10V, 0...5V
• Outputs: 4 voltage or current
• Output, voltage: true
• Overvoltage protection, max: ¡À32V DC
• Power dissipation, max: 3.3 W
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Relative humidity: 5...95% noncondensing
• Repeatability: 0.05 %
• Resolution: 16 bit across ¡À10.5V - 320 ¦ÌV/bit, 16 bit across 10.5V - 160 ¦ÌV/bit, 16 bit across 5.25V - 80 ¦ÌV/bit, 16 bit across 21 mA - 320 nA/bit
• RTB keying: None
• RTB torque: 5069-RTB18-SCREW RTB only: 0.4 Nm (3.5 lbin)
• SA power: 150mA @ 18...32V DC
• SA power passthrough, max: 9.95A @ 18...32V DC
• Scan time: Per group 0...3: 1 ms
• Shock: Operating: 30 G, Non operating: 50 G
• Short circuit detection: Voltage mode only - output electronically limited to 16 mA or less
• Slot width: 1
• Step response time to 63% of value: Voltage mode: 18 ¦Ìs max, Current mode: 1 ms max
• Suitable for safety functions: false
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on power ports, ¡À2 kV line-earth (CM) on shielded output ports
• Surrounding air temperature, max: 60 ¡ãC
• Thermal dissipation, max: 11.3 BTU/hr
• Type of electric connection: Screw-/spring clA connection
• Vibration: 5 G @ 10...500 Hz
• Voltage variation: 10 ms interruption on MOD power port
• Weight: 175 g
• Width: 22 mm
• Wire category: 2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port
• Wire size: 5069-RTB18-SPRING removable terminal block: 0.5...1.5 mm2 (22...16 AWG) solid or stranded copper wire rated at 105 ¡ãC (221 ¡ãF), or greater, 2.9 mm (0.11 in.), max diam including insulation, 5069-RTB18-SCREW removable terminal block: 0.5...1.5 mm2 (22.
