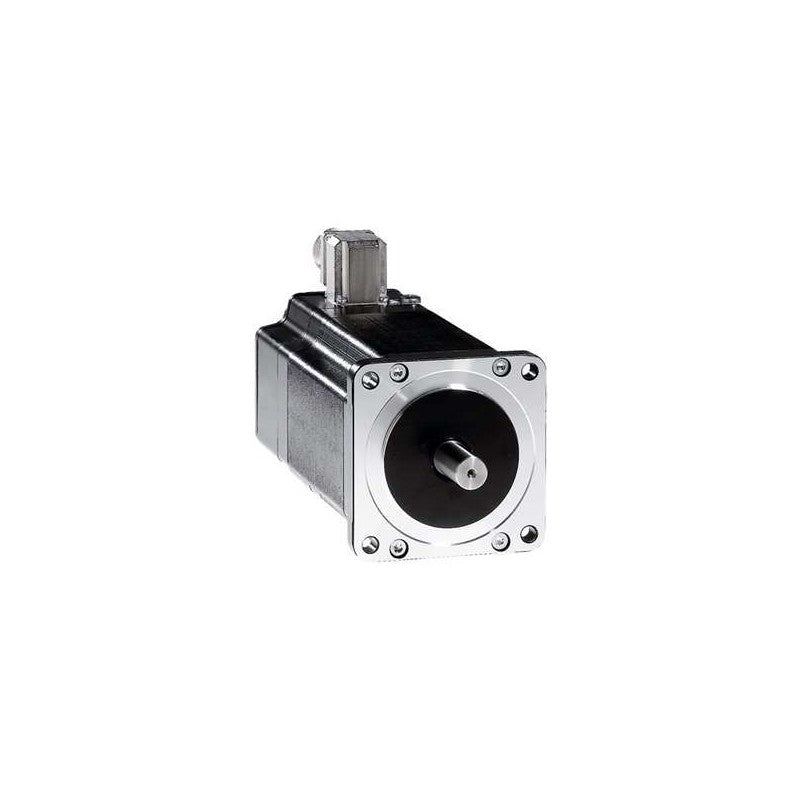

BRS39BW460ABA Schneider Electric - Lexium SD3 3-Phase Stepper Motor 6.78Nm 85mm Flange. The BRS39BW460ABA is a 3-phase stepper motor from the Lexium SD3 range, featuring a 6-pole design with 85mm flange mounting. It delivers 6Nm nominal torque and 6.78Nm holding torque at a maximum mechanical speed of 3000 rpm. The motor operates on 230V AC or 325V DC supply with 2.25A rated current. Electrical connection is via terminal box. The shaft measures 14mm diameter x 30mm length with untapped shaft end and no second shaft end.
Short-distance positioning, labeling machines, pick-and-place systems, packaging equipment, and precision motion control applications
