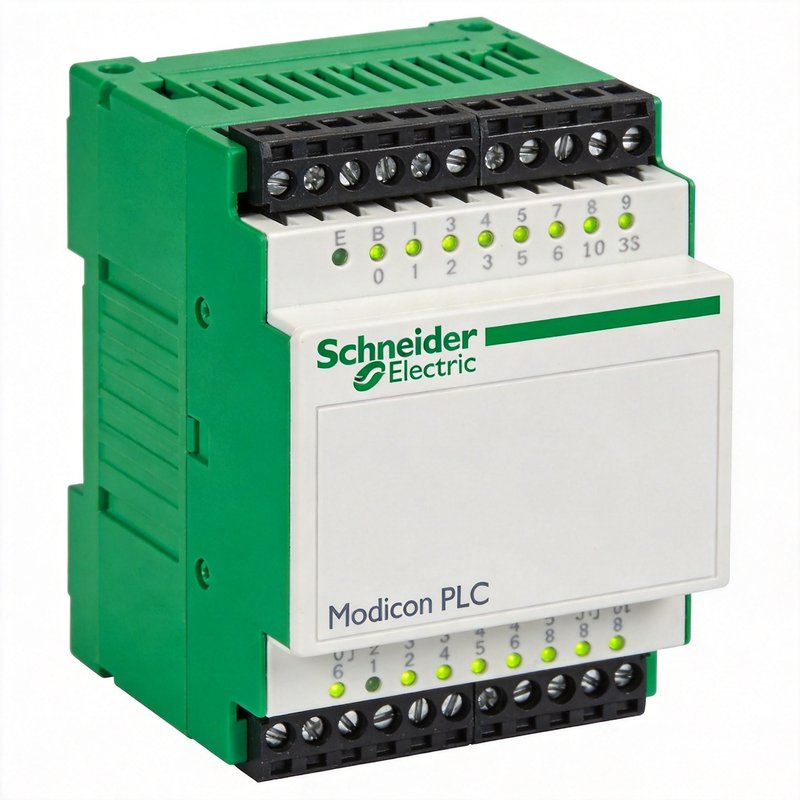

Schneider Electric BMXDDO3202KC | Industrial Automation Component

BMXDDO3202KC Schneider Electric - Modicon X80 Discrete Output Module - 32 Channels 24VDC 0.1A. Modicon X80 discrete solid state output module with 32 channels at 24VDC positive logic, 0.1A per channel. Features FCN 40-pin connector, electronic circuit breaker protection, and integrated channel diagnostics. Designed for high-density digital output applications.

• Brand: Schneider Electric
• Category: PLC I/O Module
• Series: Modicon X80
• Product Type: Discrete output module
• Number of Outputs: 32
• Output Type: Solid state
• Output Logic: Positive
• Output Voltage: 24 V DC (19-30 V DC)
• Output Current per Channel: 0.1 A
• Current per Channel (max): 0.125 A
• Maximum Current per Module: 3.2 A
• Leakage Current: <=0.1 mA at state 0
• Residual Voltage: 1.5 V at state 1
• Response Time: 1.2 ms
• Power Dissipation: 3.6 W
• Electrical Connection: 40-pin FCN connector
• Output Protection: Electronic circuit breaker, current limiter, transil diode, 2A external fuse
• Reverse Polarity Protection: Yes (reverse mounted diode)
• Current Consumption: 150 mA at 3.3 V DC
• MTBF Reliability: 360,412 hours
• Weight: 0.11 kg
• Protection Rating: IP20
• Protective Treatment: TC
• Operating Temperature: 0 to 60 degrees C
• Status LEDs: RUN (green), ERR (red), I/O (red), 1 per channel (green)
• Standards: EN/IEC 61131-2, CE, UL, CSA, RCM, EAC

Designed for Modicon M340 and M580 PLC systems requiring high-density digital output control. Suitable for driving solenoid valves, indicator lights, and low-power actuators in manufacturing, packaging, and material handling applications.
