Schneider Electric BMXDDI3202K | Industrial Automation Component

SKU: BMXDDI3202K
(1)
$56.99
-13% $65.54 $56.99
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

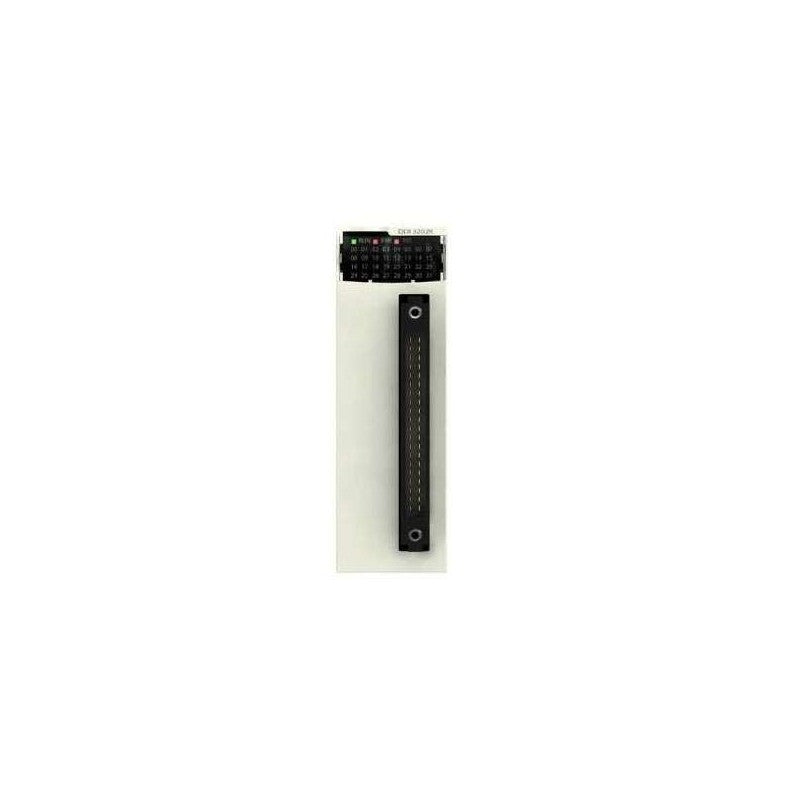

BMXDDI3202K Schneider Electric - Modicon X80 Discrete Input Module 32 Channels 24V DC. The Schneider Electric BMXDDI3202K is a high-density discrete input module for Modicon X80 platform with 32 input channels, compatible with both M580 and M340 PACs.

  • Brand: Schneider Electric
  • Category: PLC I/O Modules
  • Brand: Schneider Electric
  • Product Range: Modicon X80
  • Product Type: Discrete Input Module
  • Number of Inputs: 32
  • Input Type: Current sink (logic positive)
  • Input Voltage: 24V DC
  • Input Current: 2.5 mA
  • Input Impedance: 9600 Ohm
  • Input Filtering Time: 4 ms typical, 7 ms max
  • Current Consumption: 121 mA at 3.3V DC
  • Power Dissipation: 3.9W
  • MTBF: 905000 hours
  • Protection: Reverse polarity protection, 0.5A fast blow fuse per channel group
  • Sensor Compatibility: 2-wire/3-wire proximity sensors (IEC 61131-2 Type 1, IEC 60947-5-2)
  • IP Rating: IP20
  • Operating Temperature: 0 to 60 degrees C
  • Storage Temperature: -40 to 85 degrees C
  • Weight: 0.112 kg
  • Certifications: CE, UL, CSA, RCM
  • Standards: EN/IEC 61131-2, EN 61010-2-201
  • Warranty: 18 months

Suitable for medium to large process automation applications using Modicon M580 or M340 PACs. Ideal for high-density digital signal acquisition from sensors, switches, and field devices in manufacturing and process control systems.
