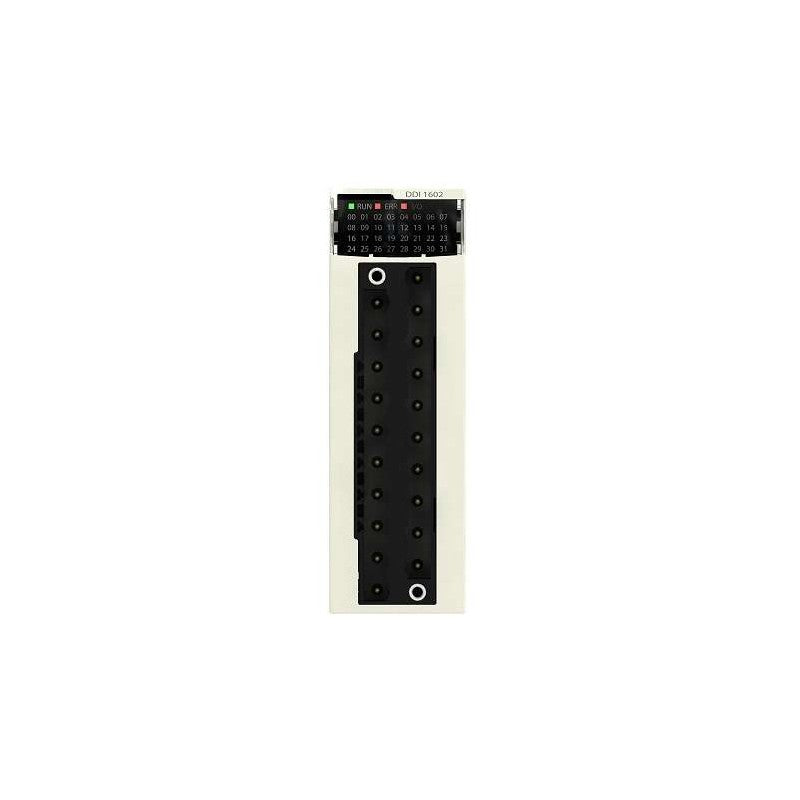

Schneider Electric BMXDDI1604T | PLC & DCS Module

BMXDDI1604T Schneider Electric - Discrete Input Module. 16-channel discrete DC input module with 125V DC positive logic, designed for Modicon X80 (M340) PLC systems.

• Brand: Schneider Electric
• Category: Discrete Input Module
• Series: Modicon X80 (M340)
• Number of Inputs: 16
• Input Voltage: 125 V DC (positive logic)
• Input Current: 2.4 mA
• Input Impedance: 50,000 Ohm
• Filtering Time: 5 ms typical, 9 ms maximum
• Response Time: 8-30 ms
• Power Dissipation: <= 8.5 W
• Mounting: Rack / DIN Rail
• Operating Temperature: -25 to 70 C
• IP Rating: IP20
• Certifications: CE, CSA, UL, RCM, EAC
• Product Weight: 0.115 kg
• Input Compatibility: 2-wire/3-wire proximity sensors (IEC 60947-5-2)

Designed for industrial automation systems requiring high-voltage DC input sensing in Modicon M340 PLC configurations.
