Schneider Electric BMXDDI1603 | Industrial Automation Component

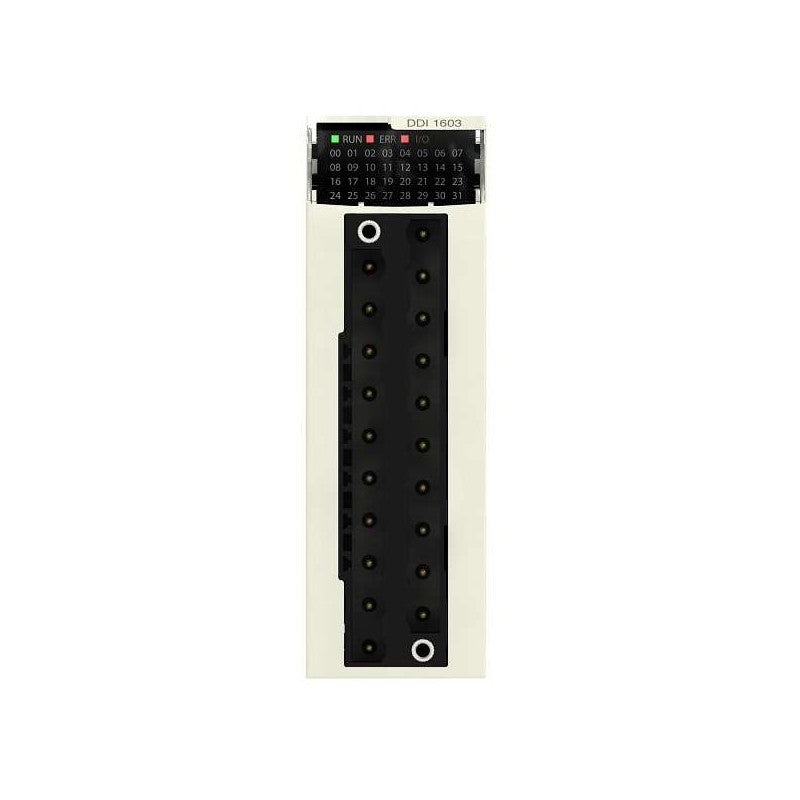

BMXDDI1603 Schneider Electric - Modicon X80 Discrete Input Module, 16 Inputs, 48V DC Positive, Isolated. Discrete input module for Modicon X80 platform with 16 isolated inputs rated at 48V DC positive logic. Features current sink input type with 2.5 mA input current and 4-7ms filtering time. Compatible with 2-wire and 3-wire proximity sensors. Equipped with per-channel diagnostic LEDs and reverse polarity protection.

• Brand: Schneider Electric
• Category: Discrete Input Module
• Product Type: Discrete Input Module
• Range of Product: Modicon X80
• Discrete Input Number: 16
• Discrete Input Type: Isolated
• Input Type: Current sink (logic positive)
• Discrete Input Voltage: 48 V DC positive
• Sensor Power Supply: 36...60 V
• Discrete Input Current: 2.5 mA
• Input Impedance: 19200 Ohm
• Input Compatibility: 2-wire/3-wire proximity sensors IEC 60947-5-2, IEC 61131-2 Type 1
• Voltage State 1 Guaranteed: >= 34 V
• Current State 1 Guaranteed: >= 2 mA
• Voltage State 0 Guaranteed: <= 10 V
• Current State 0 Guaranteed: <= 0.5 mA
• Insulation Resistance: > 10 MOhm at 500 V DC
• Power Dissipation: <= 3.6 W
• DC Typical Filtering Time: 4 ms
• DC Maximum Filtering Time: 7 ms
• Paralleling of Inputs: Yes
• Typical Current Consumption: 76 mA at 3.3V DC (90 mA at 3.3V DC max)
• MTBF Reliability: 777000 hours
• Protection Type: Reverse polarity protection, 1 external fuse per group 0.5 A fast blow
• Voltage Detection Threshold: < 24 V DC (sensor fault), > 36 V DC (sensor OK)
• Electrical Connection: 20-way connector
• Local Signalling: 1 LED green (RUN), 1 LED per channel green (diagnostic), 1 LED red (ERR), 1 LED red (I/O)
• Net Weight: 0.115 kg
• IP Degree of Protection: IP20
• Dielectric Strength: 1500 V AC 50/60 Hz 1 min (primary/secondary)
• Vibration Resistance: 3 gn
• Shock Resistance: 30 gn
• Operating Temperature: 0...60°C
• Storage Temperature: -40...85°C
• Relative Humidity: 5...95% at 55°C without condensation
• Operating Altitude: 0...2000 m (up to 5000 m with derating)
• Country of Origin: Indonesia
• Green Premium: Yes
• RoHS Compliant: Yes
• Warranty: 18 months
• Certifications: UL, CSA, CE, EAC, RCM, Merchant Navy
• Standards: UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201, CSA C22.2 No 61010-2-201

Monitors 16-channel 48V DC digital inputs from proximity sensors and field devices in industrial automation, process control, and machinery applications using Modicon M340 and M580 PLC platforms in water, wastewater, mining, and manufacturing environments.
