Schneider Electric 1602H | PLC & DCS Module
Schneider Electric 1602H | PLC & DCS Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric BMXDDI1602H | PLC & DCS Module

SKU: BMXDDI1602H
(2)
$158.00
-13% $181.70 $158.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

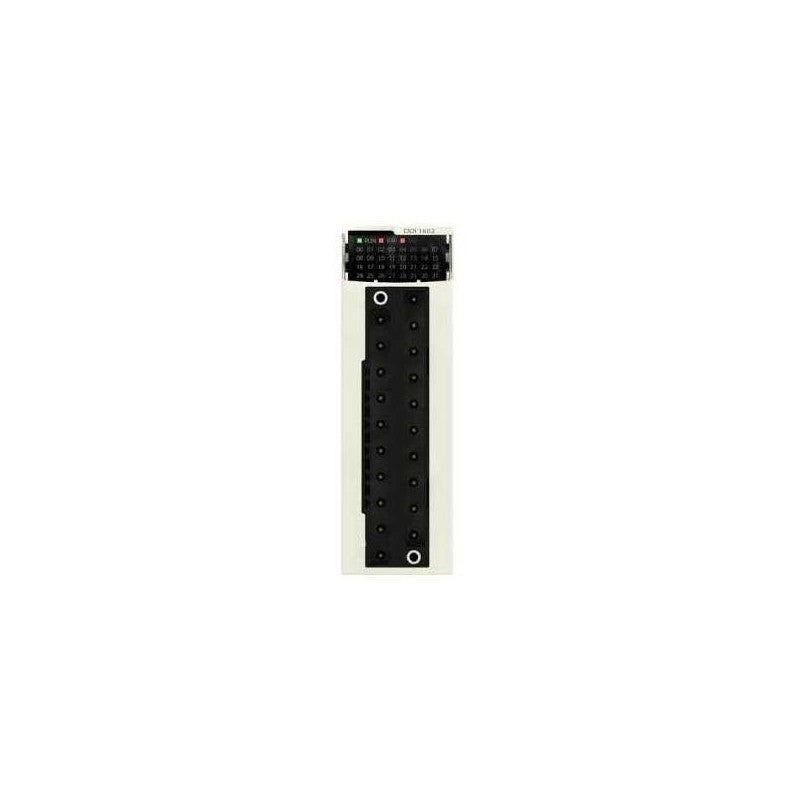

BMXDDI1602H Schneider Electric - Modicon X80 Discrete Input Module 16 Channels 24V DC Sink (H Version). The Schneider Electric BMXDDI1602H is a ruggedized discrete input module for Modicon X80 platform, compatible with both M580 and M340 PACs. The H version features conformal coating for severe environments with extended temperature range.

  • Brand: Schneider Electric
  • Category: PLC I/O Modules
  • Brand: Schneider Electric
  • Product Range: Modicon X80
  • Product Type: Discrete Input Module
  • Number of Inputs: 16
  • Input Type: Current sink (logic positive)
  • Input Voltage: 24V DC
  • Input Current: 3.5 mA
  • Input Impedance: 6800 Ohm
  • Input Filtering Time: 4 ms typical, 7 ms max
  • Current Consumption: 90 mA at 3.3V DC
  • Power Dissipation: <= 2.5W
  • MTBF: 798237 hours
  • Protection: Reverse polarity protection, 0.5A fast blow fuse per channel group
  • Protective Treatment: Conformal coating (Humiseal 1A33 TC)
  • IP Rating: IP20
  • Operating Temperature: -25 to 70 degrees C
  • Storage Temperature: -40 to 85 degrees C
  • Weight: 0.115 kg
  • Sensor Compatibility: 2-wire/3-wire proximity sensors (IEC 60947-5-2)
  • Certifications: ATEX, CE, CSA, UL, RCM, IEC-Ex, EAC
  • Standards: EN 61131-2, EN 61010-2-201, UL 508
  • Warranty: 18 months

Suitable for medium to large process automation and severe environment applications using Modicon M580 or M340 PACs. Ideal for industrial environments with dust, corrosion, and extreme temperature conditions.

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
★ ★ ★ ★ ★
5.0 / 5 (2 review)
