Schneider Electric BMXDAI1604 | PLC & DCS Module

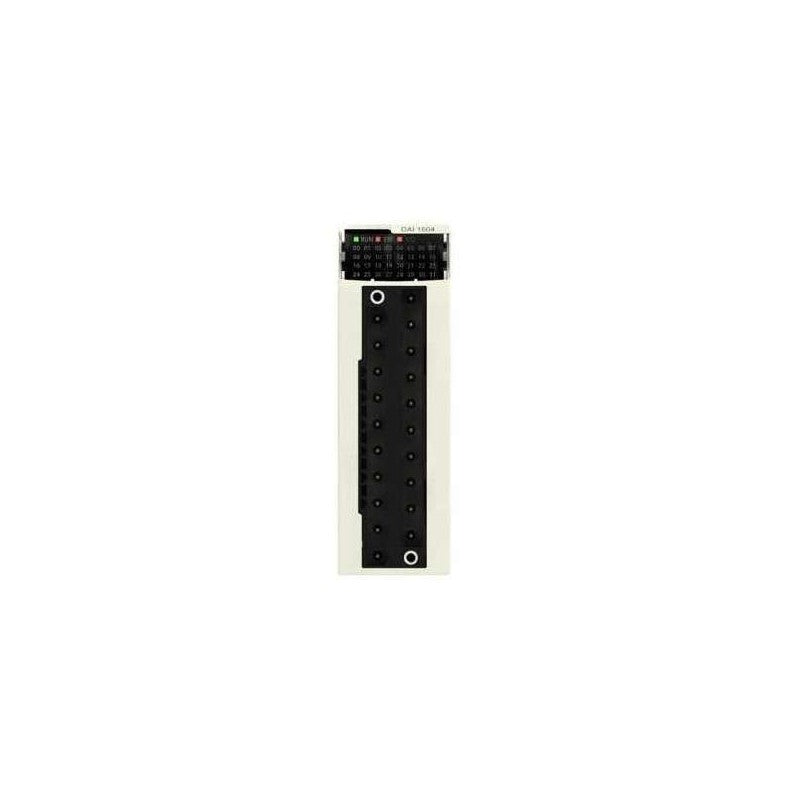

BMXDAI1604 Schneider Electric - Discrete AC Input Module. Modicon X80 discrete AC input module with 16 isolated capacitive inputs at 120V AC, designed for industrial PLC systems.

• Brand: Schneider Electric
• Category: Discrete Input Module
• Series: Modicon X80 (M340)
• Product Type: Discrete AC Input Module
• Number of Inputs: 16
• Input Type: Isolated, capacitive
• Input Voltage: 100-120 V AC
• Input Current: 5 mA
• Input Impedance: 13,000 Ohm
• Network Frequency: 50/60 Hz (47-63 Hz)
• Filtering Time: 10 ms activation, 20 ms deactivation
• Power Dissipation: <= 3.8 W
• MTBF: 1,504,958 hours
• Mounting: Rack / DIN Rail
• Operating Temperature: 0 to 60 C
• IP Rating: IP20
• Certifications: CE, UL, CSA, RCM, EAC
• Product Weight: 0.156 kg
• Input Compatibility: 2-wire/3-wire proximity sensors
• Insulation: 1500 V AC at 50/60 Hz for 1 min

Designed for industrial automation systems requiring AC input sensing in Modicon M340 PLC configurations.
