Schneider Electric BMXCRA31210 | PLC & DCS Module

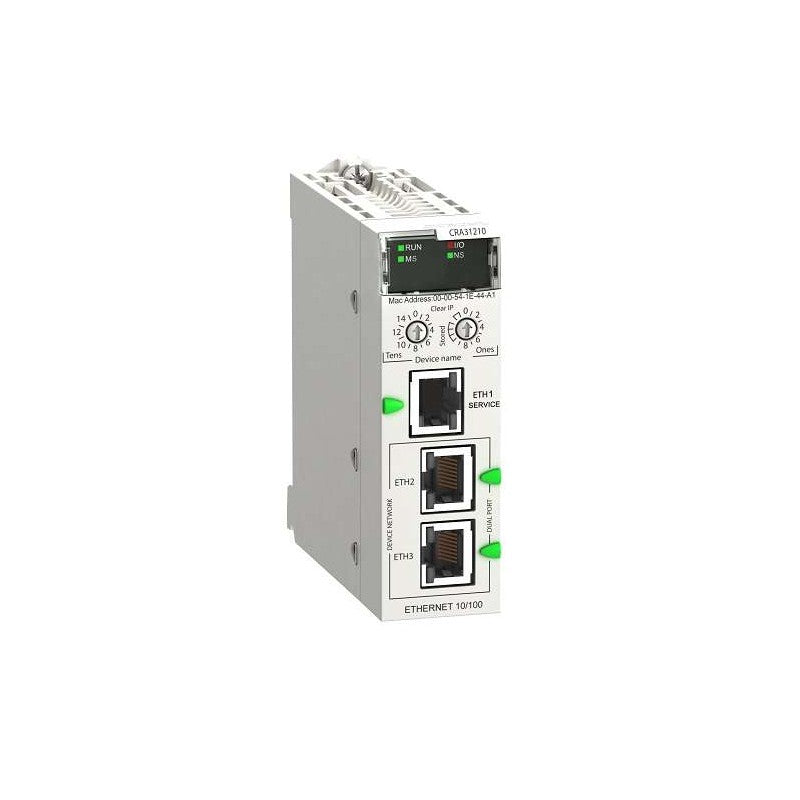

BMXCRA31210 Schneider Electric - Modicon X80 Ethernet/IP Remote I/O Adapter Module. BMXCRA31210 is a Modicon X80 high-performance Ethernet/IP remote I/O adapter module with 3 RJ45 ports supporting 10/100 Mbps. Enables ring topology for resilient network communication. Supports up to 1024 discrete and 256 analog channels with 10ms time-stamped data recording. Powered by 3.3V DC with rack-mounted installation.

• Brand: Schneider Electric
• Category: Remote I/O Adapter Module
• Series: Modicon X80
• Product Type: Remote I/O expansion module (Ethernet/IP)
• Network Interface: Ethernet/IP, 3-port, 10/100 Mbps, 10/100BASE-TX
• Connectors: 3 x RJ45 (SERVICE port + 2 DEVICE NETWORK ports)
• Topology: Ring
• Supply Voltage: 3.3V DC
• Current Consumption: 1200 mA
• Max Discrete Channels: 1024 inputs, 1024 outputs
• Max Analog Channels: 256 inputs, 256 outputs
• Data Recording: 10 ms time stamps
• LEDs: RUN (green), ERR (red), STS (green), Mod Status, Net Status
• Module Format: Standard
• Mounting: Rack-mounted, by screws
• Dimensions (W x H x D): 32 x 100 x 87.5 mm
• Weight: 0.225 kg
• Protection Rating: IP20
• Operating Temperature: 0 to 60 degrees C
• Storage Temperature: -40 to 85 degrees C
• Operating Altitude: Up to 2000 m
• Relative Humidity: 95% without condensation
• Product Compatibility: Counter, time-stamping, SSI encoder, motion control, frequency input, AS-Interface, serial link, fiber converter modules
• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, IACS E10
• Environmental Design: Green Premium
• Warranty: 18 months

Ideal for distributed I/O architectures in industrial automation systems requiring Ethernet/IP communication with ring topology for network resilience. Suitable for process control, manufacturing lines, and infrastructure applications where large-scale I/O expansion with deterministic data recording is needed.
