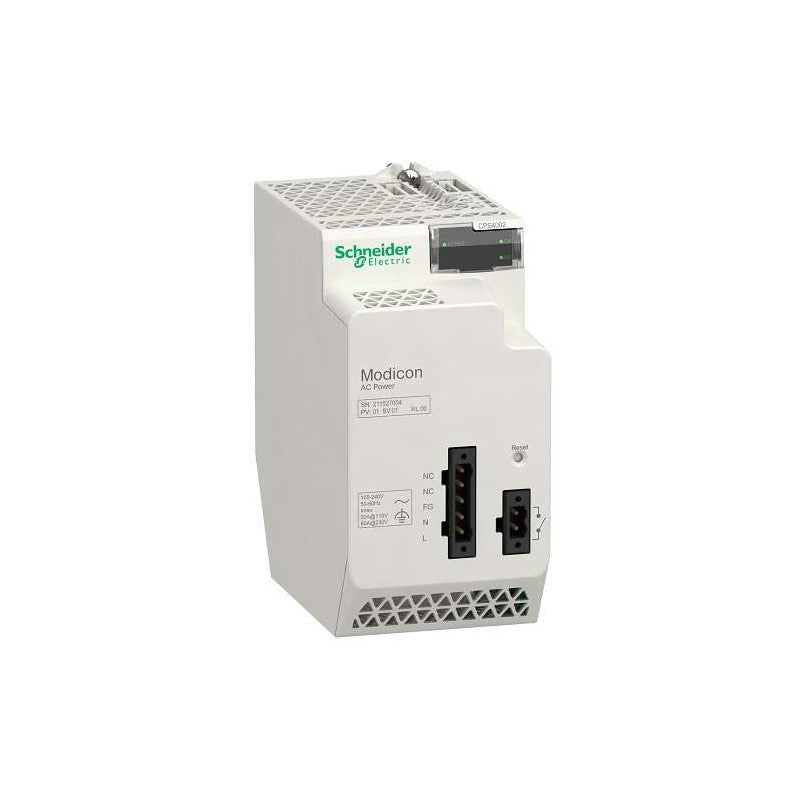

Schneider Electric BMXCPS4002 | PLC & DCS Module

BMXCPS4002 Schneider Electric - BMXCPS4002. Modicon X80 AC power supply module operating on 100 to 240V AC input with 50/60Hz frequency. Delivers 40W at 24V DC for I/O module power and processor, plus 18W at 3.3V DC for I/O module logic. Features advanced diagnostics via network including temperature sensing, redundancy test, uptime duration, redundancy information, and remaining lifetime. Internal fuse protection for primary circuit with overload, overvoltage, and short-circuit protection for secondary circuit. RESET push-button for cold restart with 3 status LEDs. Compatible with all backplanes.

• Brand: Schneider Electric
• Category: Power Supply Module
• Product Type: Power Supply Module
• Product Series: Modicon X80
• Input Voltage: 100 to 240V AC
• Input Voltage Limits: 85 to 264V AC
• Frequency: 50/60 Hz (47 to 63 Hz)
• Secondary Power: 40W at 24V DC, 18W at 3.3V DC
• Output Current: 1.67A at 24V DC, 5.5A at 3.3V DC
• Input Current: 0.52A at 240V, 1.04A at 115V
• Inrush Current: 30A at 120V, 60A at 240V
• Max Power Dissipation: <= 8.5W
• Immunity to Microbreaks: 1 ms
• MTBF: 792,000 hours
• Protection Type: Internal fuse (primary), Overload/Overvoltage/Short-circuit (secondary)
• Status LEDs: 3 Green (voltage OK, redundancy OK, power supply status)
• Control: RESET push-button (cold restart)
• Advanced Diagnostics: Temperature sensing, Redundancy test, Uptime, Remaining lifetime
• Dielectric Strength: 1500V (primary to ground/secondary)
• Protection Rating: IP20
• Operating Temperature: 0 to 60 °C
• Protective Treatment: Conformal coating Humiseal 1A33, TC
• Certifications: CE, RCM, CSA, UL, EAC, Merchant Navy
• Green Premium: Yes
• Weight: 0.51 kg
• Warranty: 18 months

Powers Modicon X80 I/O modules and processors in M340 and M580 PLC rack configurations, providing AC-to-DC power conversion with advanced diagnostics and redundancy support for industrial automation systems.
