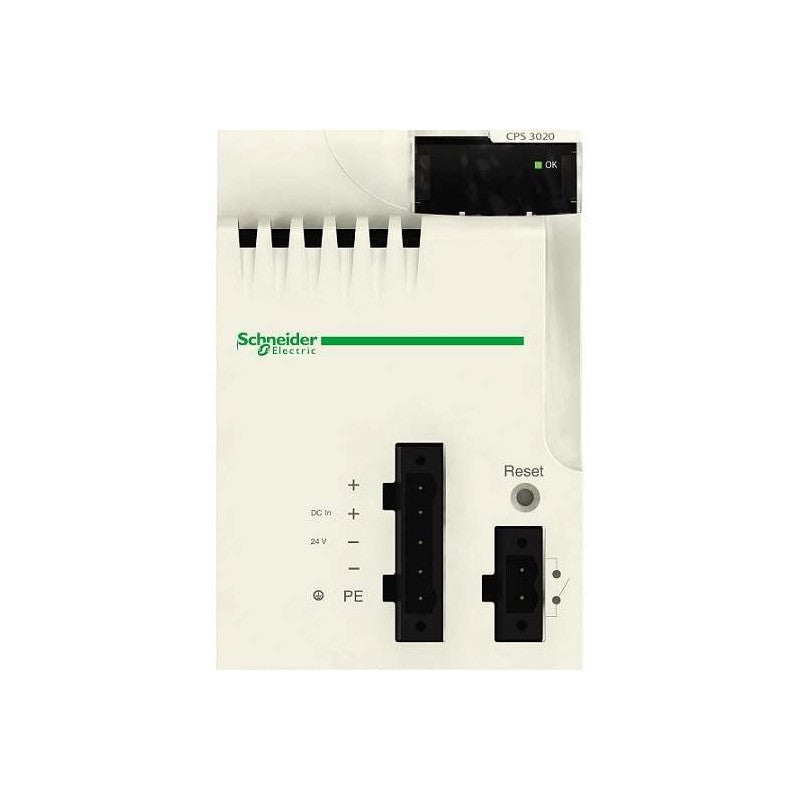

Schneider Electric BMXCPS3020 | Industrial Automation Component

BMXCPS3020 Schneider Electric - BMXCPS3020. Modicon X80 isolated DC power supply module operating on 24 to 48V DC input. Delivers 31.2W secondary power comprising 15W at 3.3V DC for I/O module logic and 31.2W at 24V DC for I/O module power and processor. Features internal fuse protection for primary circuit, overload and overvoltage protection for secondary circuit, and short-circuit protection for 24V sensor power supply. Includes RESET push-button for cold restart and green status LED. CE, CSA, UL, and RCM certified.

• Brand: Schneider Electric
• Category: Power Supply Module
• Product Type: Power Supply Module
• Product Series: Modicon X80
• Input Voltage: 24 to 48V DC (isolated)
• Input Voltage Limits: 18 to 62.4V DC
• Input Current: 1.65 A at 24V, 0.83 A at 48V
• Inrush Current: 30 A at 24V, 60 A at 48V
• Secondary Power: 15W at 3.3V DC (logic), 31.2W at 24V DC (I/O and processor)
• Output Current: 1.3 A at 24V DC, 4.5 A at 3.3V DC
• Power Dissipation: <= 8.5 W
• Immunity to Microbreaks: 1 ms
• Protection Type: Internal fuse (primary), Overload/Overvoltage/Short-circuit (secondary)
• Status LED: 1 Green (rack voltage OK)
• Control: RESET push-button (cold restart)
• Dielectric Strength: 1500V (primary to ground/secondary)
• Protection Rating: IP20
• Operating Temperature: 0 to 60 °C
• Protective Treatment: TC
• Certifications: CE, CSA, UL, RCM, Merchant Navy, EAC
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Green Premium: Yes
• Weight: 0.34 kg
• Warranty: 18 months

Powers Modicon X80 I/O modules and processors in PLC rack configurations, providing isolated and protected DC power for reliable operation in industrial automation systems including single-rack and multi-rack architectures.
