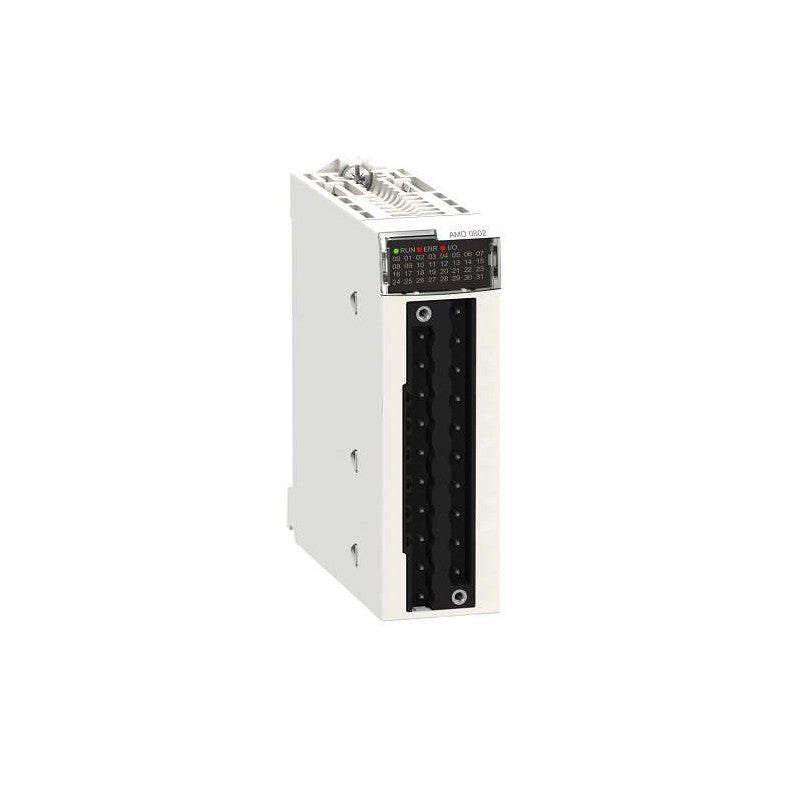

Schneider Electric BMXAMO0802 | Industrial Automation Component

BMXAMO0802 Schneider Electric - BMXAMO0802. Modicon X80 analog output module with 8 current outputs supporting 0-20mA and 4-20mA ranges. Features 16-bit resolution (15 bits + sign) with conversion time of 4ms maximum. Measurement error of 0.1% at 25°C and 0.25% over 0-60°C range. Provides 1400V DC isolation between channels and ground/bus with open circuit detection for 4-20mA and short circuit detection for 0-20mA. Internal power supply via rack with configurable fallback mode. Includes per-channel diagnostic LEDs and MTBF of 1,500,000 hours.

• Brand: Schneider Electric
• Category: Analog Output Module
• Product Type: Analog Output Module
• Product Series: Modicon X80
• Number of Outputs: 8
• Output Type: Current (0-20 mA, 4-20 mA)
• Resolution: 15 bits + sign
• Conversion Time: <= 4 ms
• Measurement Error: <= 0.1% at 25°C, <= 0.25% at 0-60°C
• Temperature Drift: 45 ppm/°C
• Load Impedance: <= 350 Ohm
• Isolation Voltage: 1400V DC (channels to ground/bus)
• Common Mode Rejection: >= 80 dB
• Detection Type: Open circuit (4-20mA), Short circuit (0-20mA)
• Supply: Internal via rack
• Current Consumption: 150 mA at 3.3V DC, 74 mA at 24V DC
• Fallback Mode: Configurable / Predefined
• Status LEDs: 1 Green (RUN), 8 Green (per channel), 1 Red (ERR), 1 Red (I/O)
• MTBF: 1,500,000 hours
• Protection Rating: IP20
• Operating Temperature: 0 to 60 °C
• Protective Treatment: TC
• Certifications: CE, CSA, UL, RCM, Merchant Navy, EAC
• Green Premium: Yes
• Weight: 0.15 kg
• Warranty: 18 months

Provides high-density analog current output for controlling valves, drives, and process actuators in Modicon M340 and M580 PLC systems, ideal for multi-loop process control in industrial automation applications.
