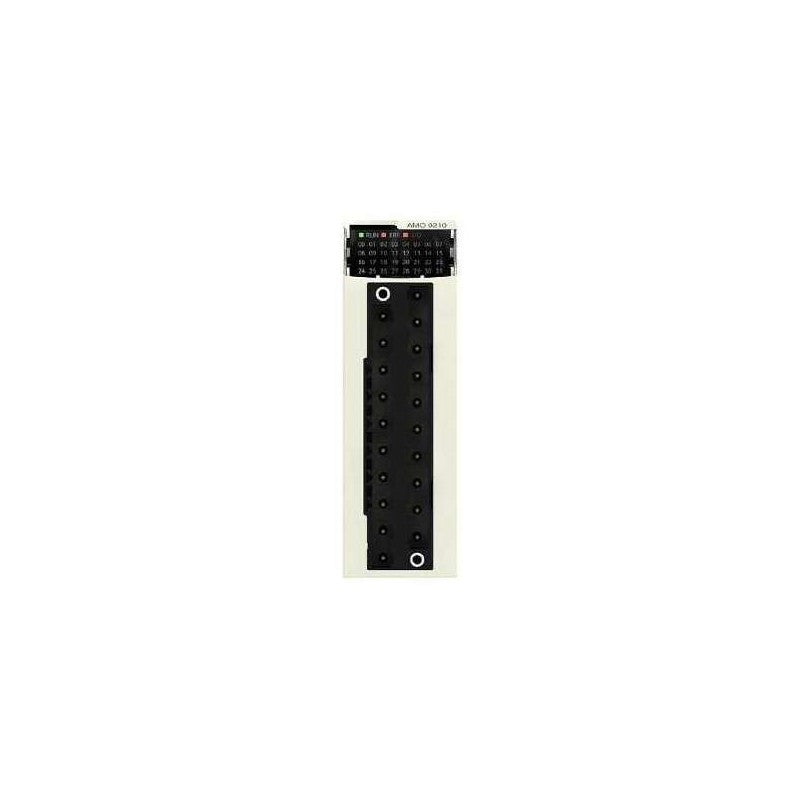

BMXAMO0210H Schneider Electric - Modicon X80 Isolated Analog Output Module 2 Channels 15-bit (H Version). The Schneider Electric BMXAMO0210H is a ruggedized isolated analog output module for Modicon X80 platform. The H version features conformal coating for severe environments with 2 isolated analog output channels supporting current and voltage modes.

  • Brand: Schneider Electric
  • Category: PLC I/O Modules
  • Brand: Schneider Electric
  • Product Range: Modicon X80
  • Product Type: Isolated Analog Output Module
  • Number of Outputs: 2
  • Output Types: Current 0-20mA, Current 4-20mA, Voltage +/-10V
  • Resolution: 15 bits + sign
  • Conversion Time: <= 1 ms
  • Measurement Error: <= 0.2% of full scale (0-60 degrees C), 0.1% at 25 degrees C
  • Temperature Drift: 30 ppm/degrees C
  • Load Impedance: <= 600 Ohm (current), >= 1000 Ohm (voltage)
  • Isolation: Isolated between channels, 1400V DC channel-to-ground
  • Common Mode Rejection: 100 dB
  • Protective Treatment: Conformal coating (H version)
  • Fallback Mode: Configurable
  • Supply: Internal power supply via rack
  • IP Rating: IP20
  • Operating Temperature: -25 to 70 degrees C (H version)
  • Net Weight: 0.144 kg
  • Power Consumption: 2.1W typical at 24V DC
  • Certifications: CE, CSA, UL, RCM, EAC
  • Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
  • Warranty: 18 months

Suitable for industrial process control applications in severe environments using Modicon M580 or M340 PACs. Ideal for driving analog actuators, valves, and positioning controllers requiring isolated high-precision analog output signals.
