Beckhoff BK9105 | Beckhoff Bus Terminals

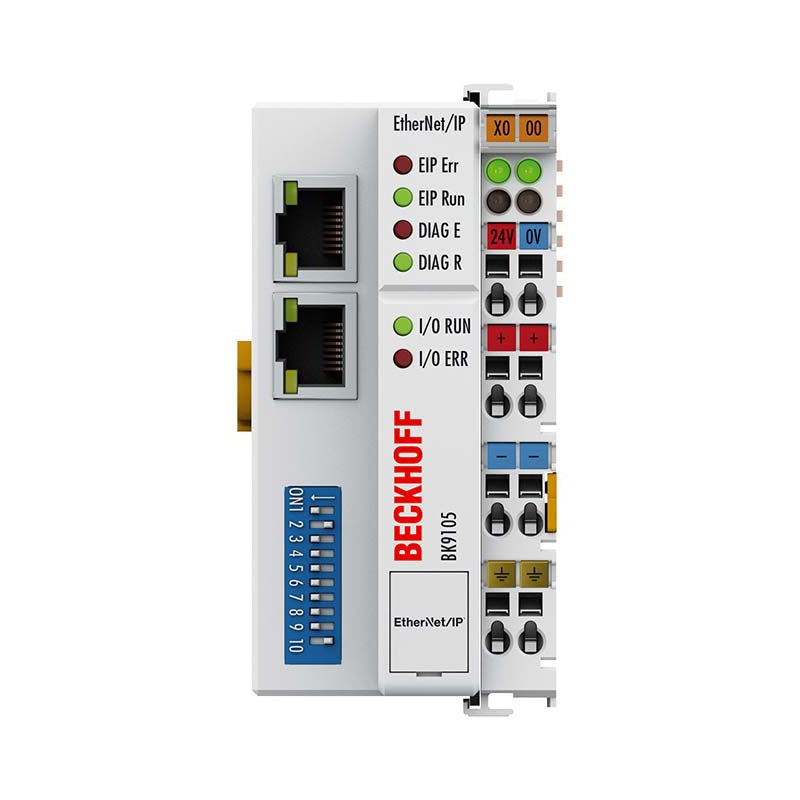

BK9105 | EtherNet/IP™ Bus Coupler

The BK9105 Bus Coupler connects EtherNet/IP™ with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number ...

Technical Specifications

BK9105 Number of Bus Terminals 64 (255 with K-bus extension) Max. number of bytes fieldbus 492 byte input and 492 byte output Digital peripheral signals 3,936 inputs/outputs Analog peripheral signals 122 inputs/outputs Configuration via KS2000 Protocol EtherNet/IP™ Transmission rate 10/100 Mbit/s, automatic recognition of the transmission rate Bus interface 2 x RJ45 (2-channel switch) Transmission medium 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) Power supply 24 V DC (-15%/+20%) Input current 70 mA + (total K-bus current)/4, 500 mA max. Starting current 2.5 x continuous current Recommended fuse ≤ 10 A Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/fieldbus) Topology line or star wiring Distance between stations 100 m between hub/switch and bus coupler or between bus coupler
