Beckhoff BK9050 | Beckhoff Bus Terminals

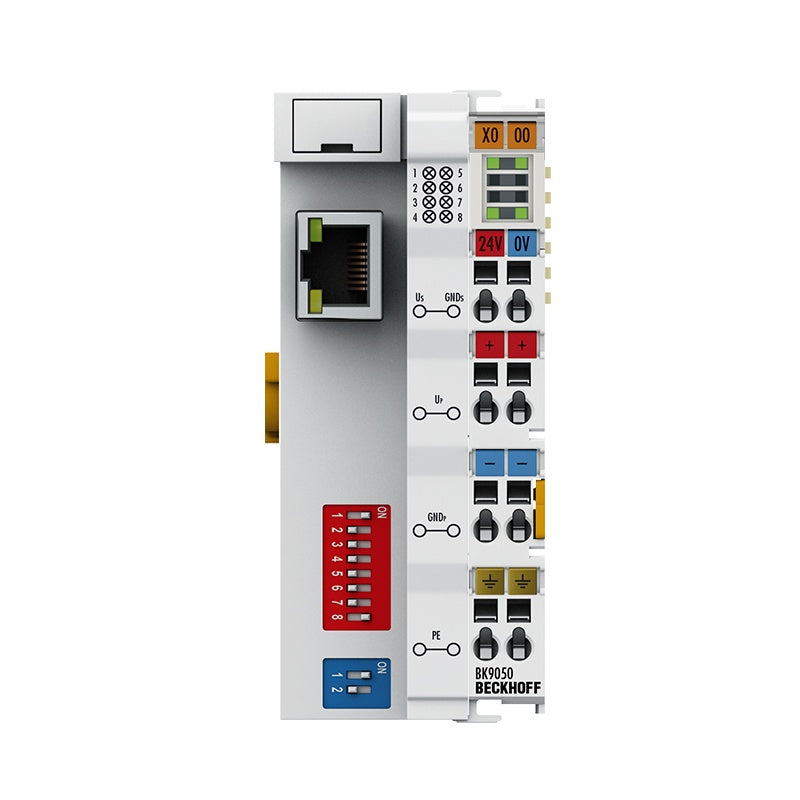

BK9050 | Ethernet TCP/IP Bus Coupler

The BK9050 Compact Bus Coupler with compact housing connects Ethernet with the modular, extendable electronic terminal blocks. One unit consists of one...

Technical Specifications

BK9050 Number of Bus Terminals 64 (255 with K-bus extension) Max. number of bytes fieldbus 512 byte input and 512 byte output Digital peripheral signals 1,020 inputs/outputs Analog peripheral signals 128 inputs/outputs Configuration via KS2000 Protocol TwinCAT ADS, Modbus TCP, Beckhoff real-time Ethernet Transmission rate 10/100 Mbit/s, automatic recognition of the transmission rate Bus interface 1 x RJ45 Transmission medium 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) Power supply 24 V DC (-15%/+20%) Input current 70 mA + (total K-bus current)/4, 500 mA max. Starting current 2.5 x continuous current Recommended fuse ≤ 10 A Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/fieldbus) Topology star wiring Distance between stations 100 m between hub/switch and bus coupler Weight app

Availability: regular delivery
