Beckhoff BK5200 | Beckhoff Bus Terminals

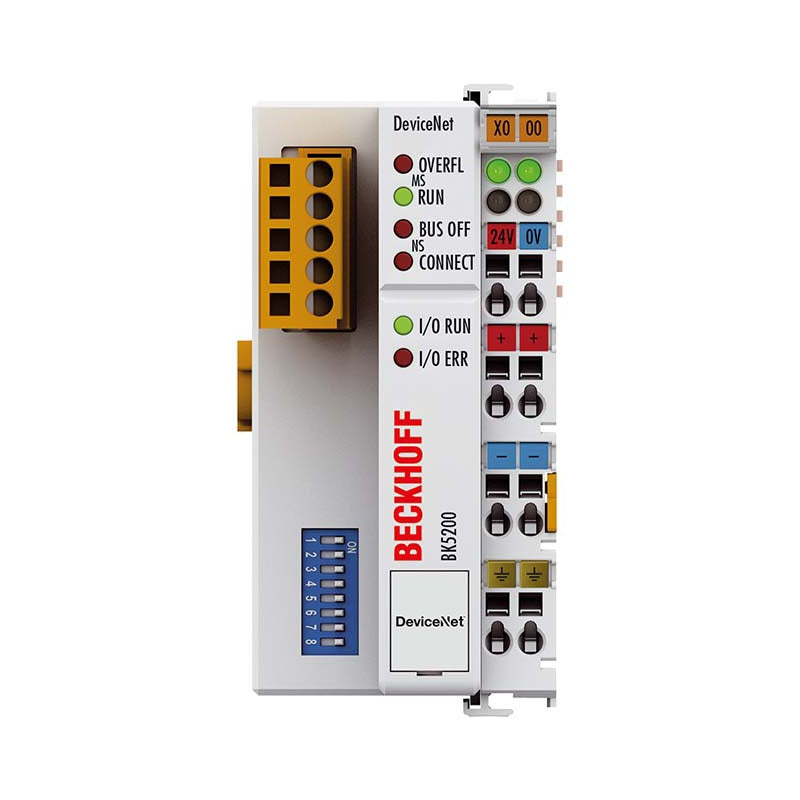

BK5200 | DeviceNet® Bus Coupler

The BK5200 Bus Coupler connects the DeviceNet® bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists...

Technical Specifications

BK5200 Number of Bus Terminals 64 Max. number of bytes fieldbus 512 byte input and 512 byte output Digital peripheral signals 512 inputs/outputs Analog peripheral signals 256 inputs/outputs Configuration via KS2000 or the controller Transmission rate via Dip switch Bus interface 1 x open pluggable connector, 5-pin, included Transmission medium screened, twisted copper wire with power supply, 5-pin Power supply 24 V DC (-15%/+20%), through bus cable 11…25 V (conforms to DeviceNet ® specification) Input current 70 mA + (total K-bus current)/4, 500 mA max. Starting current approx. 2.5 x continuous current Recommended fuse ≤ 10 A Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage Bus Coupler) Operating modes bit strobe, polling, cyclic, change of state (COS) Type communications adapter Weight approx. 150 g Operating tem

Availability: regular delivery (not recommended for new projects) | recommended alternative: BK5220
