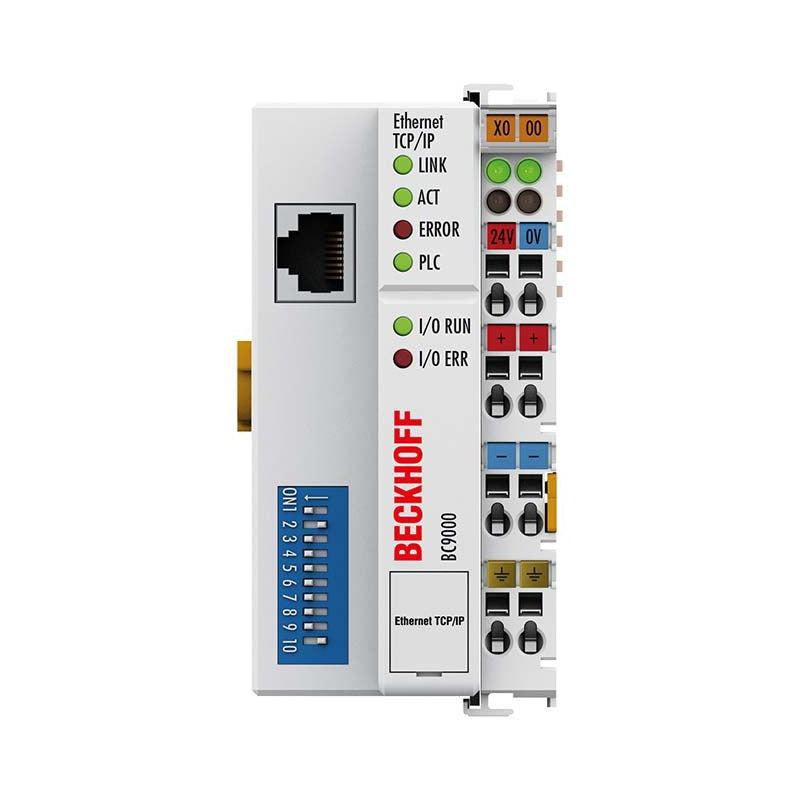

Beckhoff BC9000 | Beckhoff Bus Terminals

BC9000 | Ethernet TCP/IP Bus Terminal Controller

The BC9000 Bus Terminal Controller is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for Ethernet. It is an intelligent slave...

Technical Specifications

BC9000 Number of Bus Terminals 64 Max. number of bytes fieldbus 512 byte input and 512 byte output Max. number of bytes process image 512 byte input and 512 byte output Digital peripheral signals 512 inputs/outputs Analog peripheral signals 128 inputs/outputs Protocol TwinCAT ADS, Modbus TCP Data transfer rates 10/100 Mbit/s, automatic recognition of the transmission rate Bus interface 1 x RJ45 Configuration via KS2000 or Ethernet Power supply 24 V DC (-15%/+20%) Input current 70 mA + (total K-bus current)/4, 500 mA max. Starting current 2.5 x continuous current Recommended fuse ≤ 10 A Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/fieldbus) Weight approx. 170 g Operating temperature -25…+60°C Storage temperature -40…+85°C Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECE

Availability: regular delivery (not recommended for new projects)

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
