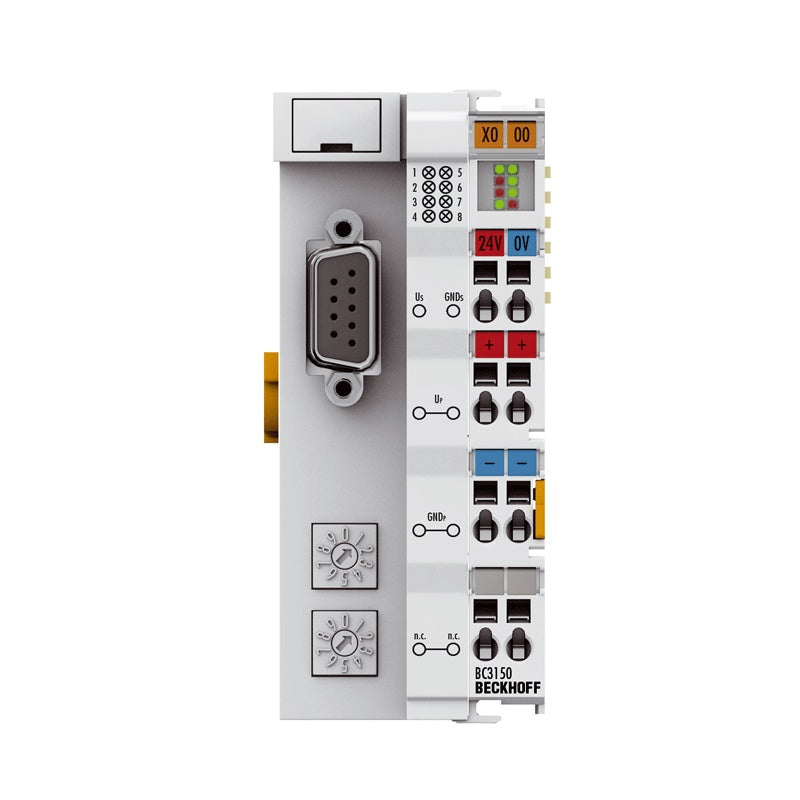

Beckhoff BC3150 | Beckhoff Bus Terminals

BC3150 | PROFIBUS Bus Terminal Controller

The BC3150 Compact Bus Terminal Controller in a compact housing is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for PROFIBUS...

Technical Specifications

BC3150 Number of Bus Terminals 64 (255 with K-bus extension) Max. number of bytes fieldbus 128 byte input and 128 byte output Max. number of bytes process image 512 byte input and 512 byte output Digital peripheral signals 2,040 inputs/outputs Analog peripheral signals 128 inputs/outputs Data transfer rates automatic detection up to 12 Mbaud Bus interface 1 x D-sub socket, 9-pin Configuration via KS2000 or fieldbus Power supply 24 V DC (-15%/+20%) Input current 320 mA max. Starting current 2.5 x continuous current Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage) Weight approx. 100 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect

Availability: regular delivery (not recommended for new projects)

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
