Beckhoff AX5805-0000 | Beckhoff Servo Drives

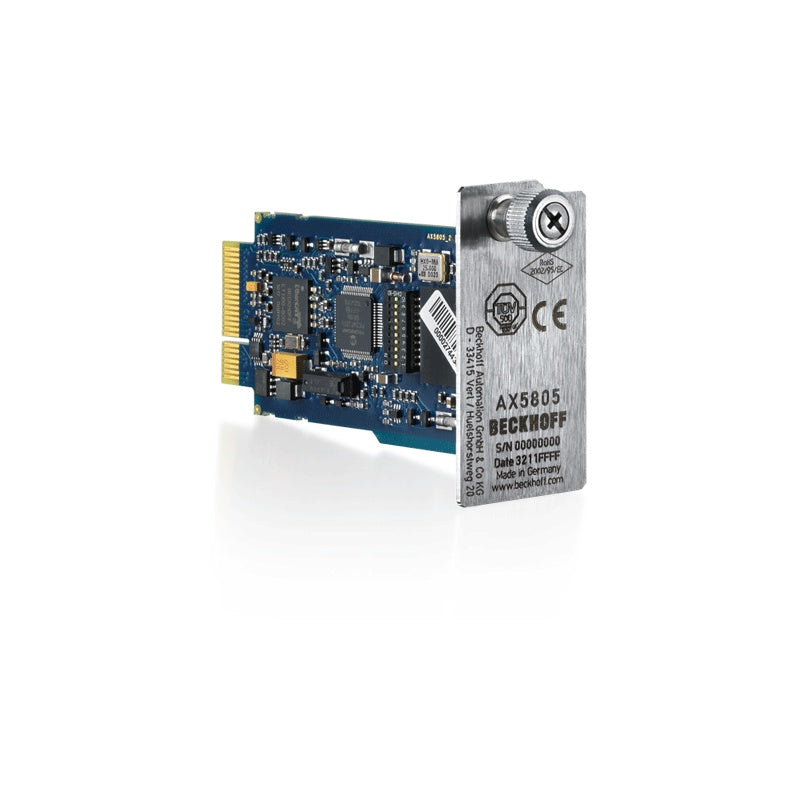

AX5805 | TwinSAFE drive option card

The AX5805 TwinSAFE component is an option card for the AX5000 servo drive series from 1.5 A to 40 A and enables the implementation of safety-relevant ...

Technical Specifications

AX5805 Function TwinSAFE option card Drive profile FSoE Safe acceleration functions Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) Safe rotating direction functions Safe Direction positive (SDIp), Safe Direction negative (SDIn) Safe speed functions Safe Speed Range (SSR), Safely Limited Speed (SLS), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS) Safe position functions Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) Safe stop functions Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS) Safety standard EN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3) Realization STO via FSoE Approvals/markings CE, cULus Ambient temperature (operation) 0…50°C Loading content ... Show more Loading content ... Show more Loading content ... Show more Loading content ... Show more © Beckhoff Automation 2026 - Ter

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
