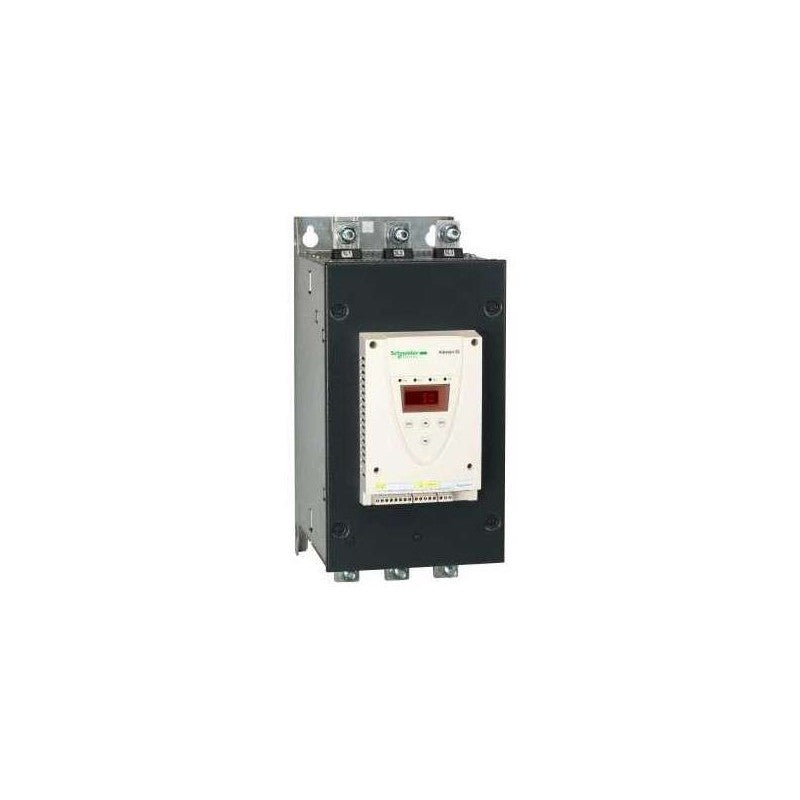

Schneider Electric ATS22C41Q | Industrial Automation Component
Schneider Electric ATS22C41Q | Industrial Automation Component

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric ATS22C41Q | Industrial Automation Component

SKU: ATS22C41Q
(1)
$2,177.84
-13% $2,504.52 $2,177.84
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ATS22C41Q Schneider Electric - Altistart 22 Soft Starter - 410A, Control 220V, 110-220kW. The Schneider Electric ATS22C41Q is an Altistart 22 soft starter for three-phase asynchronous motors, supporting both supply line and delta connection. With a rating of 410A and supply voltage from 230V to 440V, it supports motors up to 110kW at 230V and 220kW at 400-440V in line connection, or up to 400kW in motor delta connection. The unit features an integrated bypass and Modbus RS485 communication.

  • Brand: Schneider Electric
  • Category: Soft Starter
  • Product Type: Soft Starter
  • Series: Altistart 22
  • Rated Current: 410A
  • Factory Setting Current: 361A
  • Control Supply Voltage: 220V AC
  • Rated Power: 110kW (230V), 220kW (400-440V) line; up to 400kW delta
  • Supply Voltage Range: 230-440V AC
  • Supply Voltage Limits: 195-484V
  • Number of Phases: 3
  • Connection Type: Supply line or delta connection
  • Integrated Bypass: Yes
  • Communication: Modbus RS485 via RJ45
  • Discrete Inputs: 3 (24V logic)
  • Discrete Outputs: 2 relay outputs (R1, R2)
  • PTC Probe Input: 750 Ohm
  • Utilisation Category: AC-53A
  • IP Rating: IP00
  • Standards: CE, CSA, UL, CCC, C-Tick, IEC/EN 60947-4-2
  • Power Dissipation: 177W
  • Cooling: Forced convection
  • Dimensions (W x D x H): 206 x 299 x 425 mm
  • Weight: 33 kg
  • Operating Temperature: -10 to 40C without derating
  • Software Compatibility: SoMove

Soft starting and stopping of high-power three-phase motors in centrifugal pumps, piston pumps, fans, screw compressors, and material handling equipment.
