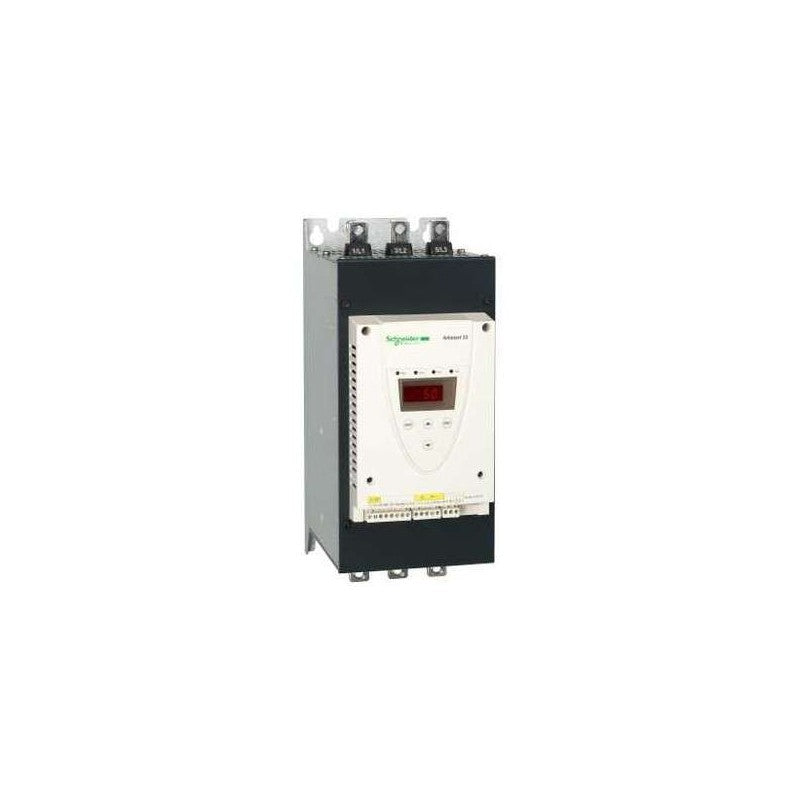

Schneider Electric ATS22C11Q | Industrial Automation Component

ATS22C11Q Schneider Electric - Schneider Electric Altistart 22 Soft Starter - 110A, 230-440V. The Altistart 22 soft start/soft stop unit is designed for three-phase asynchronous motors rated from 5 to 400 kW. This Q-suffix model supports 230-440V supply with delta connection capability for flexible motor configurations.

• Brand: Schneider Electric
• Category: Soft Starters
• Product Type: Soft Starter (ATS22 Series)
• Rated Current: 110 A
• Supply Voltage Range: 230-440 V AC
• Control Circuit Voltage: 220 V AC
• Motor Power (230V): 30 kW
• Motor Power (400V): 55 kW
• Motor Power (440V): 55 kW
• Motor Power (Delta Connection): Up to 75 kW
• Factory Setting Current: 100 A
• Connection Type: Supply line or delta connection
• Cooling: Forced convection
• Internal Bypass: Yes
• Protection Rating: IP00
• Dimensions (W x D x H): 150 x 229.5 x 356 mm
• Product Weight: 18 kg
• Standards: EN IEC 60947-4-2, UL, CSA, CE, CCC, GOST, C-Tick
• Communication: Modbus RS485
• PTC Probe: 750 Ohm
• Operating Temperature: -10 to 50 C

Industrial pumps, fans, compressors, conveyors, and other three-phase motor applications requiring controlled starting and stopping.
